An Off Road Crossover Steering System is often considered when a GM, Chevy, or Jeep Dana 44 build moves beyond stock suspension height and factory steering geometry. Once a truck or Jeep is lifted, used on rough trails, or built for larger tires, the original steering layout may not be the right match for the vehicle’s new setup.
Factory push-pull steering systems were designed around stock ride height. When lift height changes, the drag link angle can become steeper. That can lead to steering feedback, geometry issues, and bump steer symptoms, especially on lifted Chevy, GM, Jeep, trail truck, overland, and rock crawling builds.
A properly installed Dana 44 crossover steering kit can improve steering angles and can help reduce bump steer when paired with compatible components and correct steering geometry. It should not be treated as a one-part fix for every steering issue. Axle fitment, steering box selection, taper configuration, pitman arm spline count, tube sizing, and installation quality all matter.
Why Factory Steering Can Fall Short Off Road
Factory steering is usually built for daily driving and original suspension geometry. That setup may work well on a stock vehicle, but off-road use changes the demands on the steering system.
A lifted truck can place the drag link and steering linkage at less favorable angles. Larger tires can increase steering load. Rock crawling and trail driving can put repeated stress on steering parts. Overlanding rigs may also need dependable steering control over long distances and mixed terrain.
For many GM Dana 44 high steer conversion, Chevy Dana 44 crossover steering, and Jeep Dana 44 high steer conversion projects, a crossover high steer layout provides a better foundation than the factory push-pull design.
What This Complete 1-Ton Crossover High Steer Kit Does

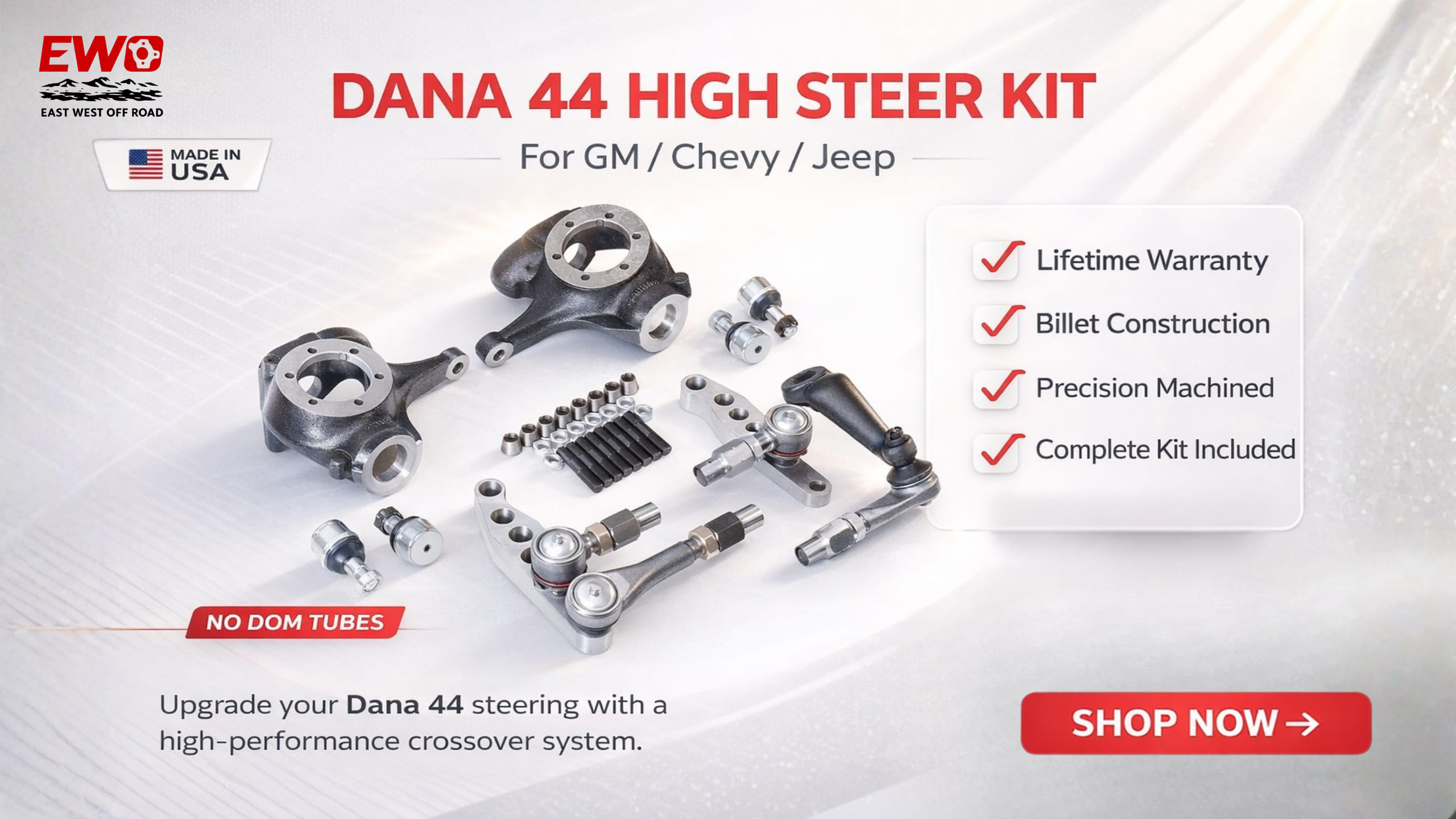

The East West Off Road GM/Chevy/Jeep Dana 44 Complete 1-Ton Crossover High Steer Kit with Knuckles is designed for heavy-duty crossover steering conversions on Dana 44 front axles.
This Dana 44 complete high steer kit includes USA-made EWO driver and passenger flat top knuckles, 1.25 inch billet high steer arms, premium 1-ton tie rod ends, drag link ends, Dana 44 ball joints, mounting studs, conical washers, lock nuts, weld bungs, jam nuts, and a fully indexable 3 inch dropped pitman arm with 32 splines.
It is designed as a crossover steering kit without DOM tubing. DOM tubing is NOT included, allowing customers to source tubing locally and help reduce oversized freight costs.
Why USA-Made Dana 44 Flat Top Knuckles Matter
Dana 44 flat top knuckles are one of the core parts of a crossover high steer system. They provide the mounting surface needed for the high steer arms.
This kit includes USA-made Dana 44 knuckles for driver and passenger sides with a bottom-down taper configuration. These knuckles are built for Dana 44 crossover steering applications and help create the foundation for the complete steering setup.
Before ordering, builders should confirm Dana 44 axle fitment, GM/Chevy/Jeep application, knuckle compatibility, taper configuration, and installation requirements. This is especially important on older axles, swapped axles, modified suspension setups, or vehicles with unknown steering history.
Why 1.25 Inch Billet High Steer Arms Matter
The included Dana 44 billet high steer arms are precision-machined from domestic billet blocks and feature a heavy-duty 1.25 inch thick design. Based on the supplied product details, the steering arms are backed by a lifetime warranty.
High steer arms connect the steering linkage to the flat top knuckles. Their fitment, taper setup, hardware match, and steering angle all affect how the system works.
For lifted Chevy steering geometry, custom 4x4 steering upgrades, rock crawling steering kit builds, and overland steering upgrade projects, the high steer arms must work correctly with the knuckles, tie rod ends, drag link ends, studs, washers, lock nuts, steering box, pitman arm, and DOM tubing.
Bottom-Down Taper Configuration Explained
This kit uses a bottom-down taper configuration. Taper direction is important because the tie rod ends and drag link ends must seat correctly in the steering arm or knuckle.
If the taper direction does not match the steering components, the steering end may not seat properly. That can create fitment problems and unsafe steering connections.
Builders should confirm taper configuration before ordering. This is especially important on custom builds, swapped Dana 44 axles, older GM/Chevy/Jeep applications, and vehicles with aftermarket or previously modified steering parts.
Why DOM Tubing Is Not Included
DOM tubing is NOT included with this Dana 44 no DOM tubes steering kit.
Long DOM tubing can create oversized shipping charges because of its length and freight handling requirements. By leaving tubing out of the package, East West Off Road allows builders to purchase DOM tubing locally and reduce shipping costs.
This also gives fabrication shops and experienced builders flexibility to cut and fit tubing for the specific vehicle. Before installation, confirm DOM tube sizing, wall thickness, weld bung compatibility, steering length, thread direction, and fabrication requirements.
Tie Rod Ends, Drag Link Ends, and Supporting Hardware
A complete off road crossover steering system needs more than knuckles and arms. This kit includes premium 1-ton steering ends:
- ES2026R drag link end
- ES2027L drag link end
- ES2234L tie rod end
- ES2234R tie rod end
Each steering end includes a grease fitting, castle nut, and cotter pin.
The kit also includes Dana 44 9/16-18 studs, conical washers, and lock nuts for high steer arm mounting. The left and right 7/8-18 tube adapters / weld bungs and jam nuts work with locally sourced DOM tubing.
Dana 44 upper and lower ball joints are included for the knuckle installation. The fully indexable 3 inch dropped pitman arm includes 32 splines. Builders should confirm pitman arm spline count and steering box compatibility before ordering.
A 2WD steering box is required for all crossover steering setups.
Key Features and Benefits
- Complete 1-ton crossover high steer steering kit
- Designed for GM, Chevy, and Jeep Dana 44 applications
- Includes USA-made EWO driver and passenger flat top knuckles
- Includes 1.25 inch billet high steer arms
- Steering arms precision-machined from domestic billet blocks
- Lifetime warranty on steering arms
- Bottom-down taper configuration
- Includes premium 1-ton tie rod ends and drag link ends
- Includes Dana 44 upper and lower ball joints
- Includes Dana 44 9/16-18 studs, conical washers, and lock nuts
- Includes weld bungs, jam nuts, and tube adapters
- Includes fully indexable 3 inch dropped pitman arm with 32 splines
- Ships without DOM tubing to help reduce freight costs
What’s Included
- 1 Dana 44 Chevy driver side flat top knuckle with bottom-down taper
- 1 Dana 44 Chevy passenger side flat top knuckle with bottom-down taper
- 1 driver side high steer arm, 1.25 inch thick
- 1 passenger side high steer arm, 1.25 inch thick
- 1 ES2026R drag link end with grease fitting, castle nut, and cotter pin
- 1 ES2027L drag link end with grease fitting, castle nut, and cotter pin
- 1 ES2234L tie rod end with grease fitting, castle nut, and cotter pin
- 1 ES2234R tie rod end with grease fitting, castle nut, and cotter pin
- 8 high-strength Dana 44 9/16-18 studs
- 8 conical washers
- 8 lock nuts
- 2 left 7/8-18 tube adapters / weld bungs
- 2 right 7/8-18 tube adapters / weld bungs
- 2 left 7/8-18 jam nuts
- 2 right 7/8-18 jam nuts
- 2 Dana 44 lower ball joints
- 2 Dana 44 upper ball joints
- 1 fully indexable 3 inch dropped pitman arm, 32 splines
Important Notes Before Ordering
DOM tubing is NOT included. Customers can purchase DOM tubing locally to help save on shipping.
A 2WD steering box is required for all crossover steering setups.
California Proposition 65 warning applies.
Before ordering, confirm Dana 44 axle fitment, GM/Chevy/Jeep application, steering box requirement, taper configuration, knuckle compatibility, pitman arm spline count, tube sizing, hardware fitment, and installation requirements.
Ideal For
This kit is ideal for:
- Off road crossover steering system builds
- Dana 44 crossover steering conversions
- GM Dana 44 high steer conversion projects
- Chevy Dana 44 crossover steering upgrades
- Jeep Dana 44 high steer conversion builds
- Lifted Chevy steering geometry improvements
- Rock crawling steering kit builds
- Overland steering upgrade projects
- Heavy-duty trail trucks
- Solid axle swaps
- Custom 4x4 steering upgrades
- Builders sourcing DOM tubing locally
Fitment and Installation Notes
This East West Off Road high steer kit is designed for GM, Chevy, and Jeep Dana 44 applications. Fitment still needs to be verified before ordering because axle variations, steering box setup, knuckle compatibility, taper direction, pitman arm spline count, tube sizing, and hardware requirements can vary.
Professional installation is recommended because steering is a safety-critical system. Final setup should include correct taper seating, proper weld quality, hardware torque, jam nut setup, steering clearance, drag link angle, and alignment.
Builders trying to fix bump steer on a lifted Chevy should look at the entire steering and suspension system, not only one part. A properly installed crossover high steer setup can help reduce bump steer symptoms when the geometry is correct.
Why Builders Choose East West Off Road
East West Off Road builds heavy-duty GM Chevy Jeep off-road steering parts for Dana axle, lifted truck, rock crawling, overlanding, and custom 4x4 applications.
This East West Off Road high steer kit gives builders USA-made Dana 44 flat top knuckles, 1.25 inch billet high steer arms, premium steering ends, ball joints, a dropped pitman arm, weld bungs, jam nuts, and mounting hardware in one package.
For builders looking for an Off Road Crossover Steering System for a Dana 44 build, this kit provides the key components while allowing local DOM tubing sourcing.
View the full product here:
https://www.eastwestoffroad.com/product/gmchevyjeep-dana-44-complete-1-ton-crossover-high-steer-kit-wknuckle-without-dom-tubes
7. FAQs
1. What is an Off Road Crossover Steering System?
An Off Road Crossover Steering System changes the steering layout to better suit lifted and modified vehicles. On Dana 44 builds, it commonly uses flat top knuckles, high steer arms, steering ends, and supporting hardware.
2. Does this kit fit GM, Chevy, and Jeep Dana 44 applications?
Yes, this kit is designed for GM, Chevy, and Jeep Dana 44 applications. Buyers should confirm axle fitment, knuckle compatibility, taper configuration, steering box requirement, and installation details before ordering.
3. What does this complete 1-ton crossover high steer kit include?
It includes Dana 44 flat top knuckles, 1.25 inch billet high steer arms, tie rod ends, drag link ends, ball joints, mounting studs, conical washers, lock nuts, weld bungs, jam nuts, and a 3 inch dropped pitman arm.
4. Why is DOM tubing not included?
DOM tubing is not included so customers can source tubing locally and help reduce oversized shipping costs. Tube size, wall thickness, weld bung compatibility, and final steering length should be confirmed before installation.
5. Is a 2WD steering box required?
Yes. A 2WD steering box is required for all crossover steering setups.
6. What does bottom-down taper configuration mean?
Bottom-down taper refers to the taper direction used for the steering connection. Tie rod ends and drag link ends must match the taper setup for proper seating.
7. Why are Dana 44 flat top knuckles important?
Dana 44 flat top knuckles provide the mounting surface needed for high steer arms, making them important for crossover high steer conversions.
8. Can this kit help reduce bump steer on lifted vehicles?
A properly installed crossover high steer setup can help reduce bump steer symptoms when paired with compatible components and correct steering geometry. It does not automatically eliminate bump steer.
