For decades, the Dana 44 front axle has been the go-to upgrade for Jeep owners looking to run larger tires and tackle harder trails. Whether you are building a dedicated rock crawler, a custom rock bouncer, or a heavy-duty overlanding rig, swapping out a weaker factory axle for a Dana 44 is a rite of passage. However, bolting the axle under the frame is only half the battle. To make the vehicle drivable and safe, the steering geometry must be meticulously corrected. A Jeep Dana 44 high steer upgrade is the definitive solution, providing the heavy-duty components necessary to adapt the axle to a lifted suspension while maximizing ground clearance. This guide explores the mechanics and planning required for a seamless integration.
The Challenge of Lifted Jeep Steering Geometry
When you install a suspension lift on a solid-axle Jeep, the distance between the frame-mounted steering box and the axle increases significantly. If you attempt to retain factory-style steering linkages (where the tie rod connects the knuckles and the drag link connects to the tie rod or a lower knuckle point), you create severe operating angles.
A steep drag link angle causes violent bump steer. As the Jeep's suspension cycles upward over an obstacle, the short, steep drag link swings in an arc that physically pushes and pulls the steering knuckle horizontally. This causes the Jeep to dart left or right without steering wheel input. To solve this, builders turn to Dana 44 crossover steering systems. Crossover steering routes a long drag link directly from the pitman arm to the passenger side knuckle, flattening the angle and drastically reducing the forces that cause bump steer.
High Steer: The Ultimate Trail Protection
While crossover steering fixes the geometry, true off-road capability requires protecting the linkage. Factory tie rods hang precariously low, perfectly positioned to smash into rocks and stumps.
A high steer setup is the answer. By replacing the standard axle knuckles with precision-machined flat top knuckles, builders can mount massive billet steering arms on top of the axle. This high steer placement is designed to improve steering-component clearance by relocating both the drag link and the tie rod high above the leaf springs (or control arm mounts, depending on the custom setup).
Components of a Complete Jeep Upgrade
Piecing together a steering system for an axle swap is notoriously frustrating. Sourcing parts that share identical tapers and thread pitches is challenging. A complete Dana 44 crossover steering system eliminates this headache.

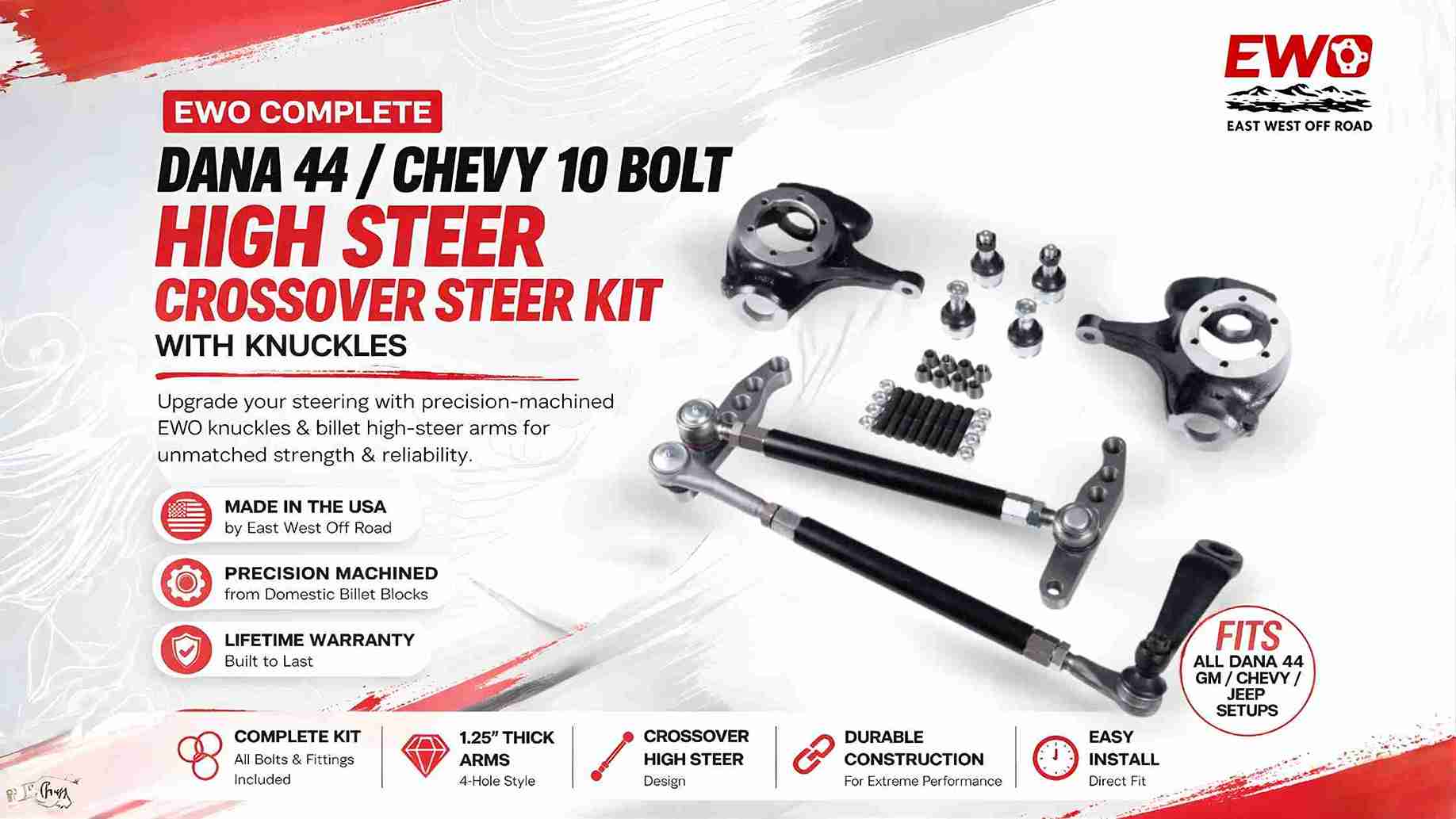

A premium package provides everything required for the "knuckle-out" assembly:
- Precision Knuckles: EWO driver-side and passenger-side flat top knuckles provide the mandatory mounting foundation.
- Billet Arms: USA-made steering arms manufactured from domestic billet blocks that are 1.25 inches thick guarantee zero flex or failure under load.
- DOM Tubing: Raw 54-inch and 43-inch heavy-wall DOM tubing that you custom cut to match your Jeep's exact width.
- 1-Ton Ends: Massive 7/8-inch Chevy 3/4-ton-style steering ends (ES2026R, ES2027L drag link ends and ES2234L, ES2234R tie rod ends) for unmatched joint strength.
- Hardware: A 3-inch dropped pitman arm, new upper and lower Dana 44 ball joints, 7/8-18 weld bungs, jam nuts, Dana 44 studs, conical washers, and lock nuts.
Axle Verification and Compatibility
Before ordering, it is critical to verify the origin of your Dana 44 axle. Because Dana 44s were produced for decades across multiple vehicle manufacturers (Ford, Dodge, Chevy, Jeep, International), the inner knuckles and ball joint spacing can vary.
The EWO complete Dana 44 high steer crossover steering kit is designed for applicable GM, Chevy, and Jeep Dana 44 builds. If your axle was sourced from a classic Chevy or a specific Jeep application, the outer components will integrate flawlessly. If you are uncertain about the axle's origin, reviewing resources on Dana 44 vs 10 Bolt axle differences can assist in identifying your specific housing.
Fitment and Custom Fabrication
Installing this kit on a custom Jeep build requires professional fabrication. The 54-inch and 43-inch DOM tubing must be carefully measured against your custom wheelbase, lift height, and track bar placement (if applicable). Once cut, the 7/8-18 weld bungs must be professionally welded into the tubes.
Furthermore, you must ensure you have the correct steering box to facilitate a crossover setup. A steering box with a sector shaft that rotates side-to-side (moving the pitman arm parallel to the axle) is strictly required for crossover steering installation.
Conclusion
A Dana 44 axle swap is a monumental step in building a highly capable Jeep, but the axle is only as strong as its steering linkage. A Jeep Dana 44 high steer upgrade ensures that your heavy-duty axle is paired with equally heavy-duty steering geometry. By utilizing USA-made billet arms, precision flat top knuckles, and thick DOM tubing, you eliminate bump steer, maximize ground clearance, and bulletproof your front end. Complete your custom build properly with the EWO complete high steer crossover steering system and hit the rocks with absolute confidence.
Frequently Asked Questions
Will this kit fit a factory Jeep Dana 30 front axle?
No. This complete high steer crossover steering kit is specifically engineered for applicable GM, Chevy, and Jeep Dana 44 and Chevy 10 Bolt front axles. The knuckles and ball joints are not compatible with a Dana 30.
Why is high steer necessary for a lifted Jeep?
Lifting a Jeep creates severe operating angles for the drag link, leading to aggressive bump steer. A high steer crossover setup corrects this geometry by flattening the drag link angle, and it moves the tie rod higher to prevent it from hitting rocks on the trail.
Does the complete kit include the tie rod and drag link tubes?
Yes. The kit includes raw, heavy-duty DOM tubing (54-inch and 43-inch lengths). Because custom Jeep builds vary in width and lift height, you must measure, cut, and professionally weld the included tube adapters into these tubes.
Are the steering arms strong enough for large off-road tires?
Absolutely. The high steer arms included in the EWO kit are 1.25 inches thick and manufactured from domestic billet blocks, making them incredibly strong and capable of turning massive tires in demanding rock crawling environments.
Do I need to buy a specific pitman arm for this installation?
The complete kit includes a 3-inch dropped pitman arm designed to optimize the drag link angle. However, you must verify that your Jeep's steering box is configured to swing side-to-side (like a 2WD Chevy box), which is required for crossover steering.
