A Dana 44 4-Stud Knuckle Upgrade is an important step for builders planning a crossover high steer setup on compatible Dana 44 or Chevy 10 Bolt front axle builds. When a lifted Chevy, Square Body, K5 Blazer, Chevy K10/K20, Jeep axle swap, or custom off-road rig moves beyond factory steering geometry, the knuckle and steering arm become key parts of the steering foundation.
The EWO Chevy 10 Bolt Knuckle and Arm Kit from East West Off Road is designed for Dana 44 crossover high steer conversions. It includes a machined-ready Dana 44 Chevy 10 Bolt flat top knuckle, a 1.25 inch thick passenger side high steer arm, high-strength 9/16-18 mounting studs, conical washers, lock nuts, and a slit tapered insert for steering orientation changes.
This kit is suitable for builders planning a Chevy 10 Bolt Crossover Steering Kit, Dana 44 Flat Top Knuckle Passenger Side upgrade, Square Body Bump Steer Fix, K5 Blazer High Steer Conversion, Chevy K10/K20 Steering Upgrade, or custom high steer setup.
Why Steering Geometry Changes on Lifted Builds
Factory steering systems are usually designed around stock ride height, factory axle position, and normal road use. Once a truck is lifted or built for trail use, steering angles can change.
That change may lead to bump steer, poor drag link angle, steering feedback, reduced control, and added stress on steering components.
On Square Body trucks, K5 Blazer builds, Chevy K10/K20 projects, Jeep axle swaps, and custom 4x4s, the original steering design may not always work well with larger tires, suspension lift, and off-road articulation.
A properly planned crossover high steer setup can improve steering angles and can help reduce bump steer when installed with compatible components and correct steering geometry.
Crossover Steering vs Push Pull
Many older Chevy and GM builds use a push-pull steering layout. For stock use, that setup may be acceptable. But when the truck is lifted or driven hard off-road, the steering path can become less ideal.
When comparing Crossover Steering vs Push Pull, crossover steering is often used because it changes the steering connection path and helps support a more suitable drag link angle for lifted applications.
A high steer conversion should always be planned as a full system. The knuckle, steering arm, taper direction, steering orientation, mounting hardware, tie rod setup, drag link setup, pitman arm relationship, and installation quality all matter.
What a Crossover High Steer Knuckle and Arm Kit Does
A crossover high steer knuckle and arm kit gives builders the core foundation for raising the steering connection on the passenger side of the front axle.
The EWO Chevy 10 bolt knuckle kit is built for Dana 44 and Chevy 10 Bolt front axle applications. It does not replace every steering component in a full build, but it provides the machined knuckle, passenger side high steer arm, and hardware needed to start a crossover high steer conversion.
This type of setup is useful for rock crawling builds, lifted off-road trucks, overland rigs, Jeep axle swaps, heavy-duty trail rigs, and custom 4x4 steering layouts.
Why the Dana 44 Chevy 10 Bolt Flat Top Knuckle Matters
The flat top knuckle is the mounting foundation for the high steer arm. Without the correct machined surface and compatible configuration, the steering arm cannot be properly planned for the crossover layout.
This kit includes one Dana 44 Chevy 10 Bolt knuckle, machined and ready to use. The included knuckle uses a bottom-up taper configuration.
For builders searching for a Chevy 10 bolt steering knuckle machined or Dana 44 Flat Top Knuckle Passenger Side, this kit provides a focused passenger-side knuckle and arm package for compatible high steer conversions.
Why the 1.25 Inch Passenger Side High Steer Arm Matters
The kit includes one 1.25 inch thick HD Dana 44 passenger side high steer arm. This Dana 44 1-ton crossover high steer arm helps create the raised steering connection used in a crossover high steer layout.
For buyers comparing a Chevy 10 bolt passenger arm 1.25 thick or HD passenger arm Dana 44, this arm is a major part of the kit.
The steering arm affects the drag link path, steering angle, and final geometry. It should be matched carefully with the knuckle, taper orientation, steering linkage, suspension height, and intended vehicle use.
Bottom-Up Taper Configuration Explained
This kit uses a Dana 44 bottom up tapered knuckle configuration. Taper direction is important because steering components must seat correctly in the intended orientation.
A bottom-up taper means the steering layout is planned around that direction. Builders should confirm that the taper configuration matches their steering setup before installation.
Do not assume all Dana 44, Chevy 10 Bolt, Square Body, K5 Blazer, or Chevy K10/K20 builds use the same taper direction.
Slit Tapered Insert and Bottom-Down Option
The kit includes a slit tapered insert. Based on the product details, this insert allows users to switch steering orientation from bottom-up to bottom-down if needed.
This can be useful for custom steering layouts where orientation flexibility is required. However, it should be used only after confirming fitment and steering geometry.
Before final assembly, confirm whether your build requires the bottom-up taper setup or the slit tapered insert bottom down orientation. Drag link angle, steering clearance, and installation requirements should be reviewed before the vehicle is driven.
Role of 9/16-18 Studs, Conical Washers, and Lock Nuts
The kit includes 4 high-strength 9/16-18 studs, 4 conical washers, and 4 lock nuts.
These components are used to mount the passenger side high steer arm to the machined flat top knuckle. For builders searching for 9/16-18 high strength studs Dana 44, this hardware is included in the EWO kit.
Correct installation is important. The studs, washers, and lock nuts should be installed as part of the full steering system. If a builder is not experienced with high steer installation, professional installation support is recommended.
Key Features and Benefits
Built for Dana 44 and Chevy 10 Bolt Front Axles
This East West Off Road knuckle and arm kit is designed for crossover high steer applications using Dana 44 and Chevy 10 Bolt front axles.
Machined-Ready Flat Top Knuckle
The included knuckle is precision machined and ready to use for compatible high steer conversion planning.
1.25 Inch Thick Passenger Side Arm
The included passenger side high steer arm uses a heavy-duty 1.25 inch thick design for demanding off-road steering applications.
Bottom-Up Taper Setup
The knuckle is supplied with a bottom-up taper configuration for the intended steering orientation.
Slit Tapered Insert Included
The slit tapered insert allows a change from bottom-up to bottom-down orientation if the steering layout requires it.
High-Strength Mounting Hardware
The kit includes 9/16-18 studs, conical washers, and lock nuts for the knuckle and arm setup.
What’s Included

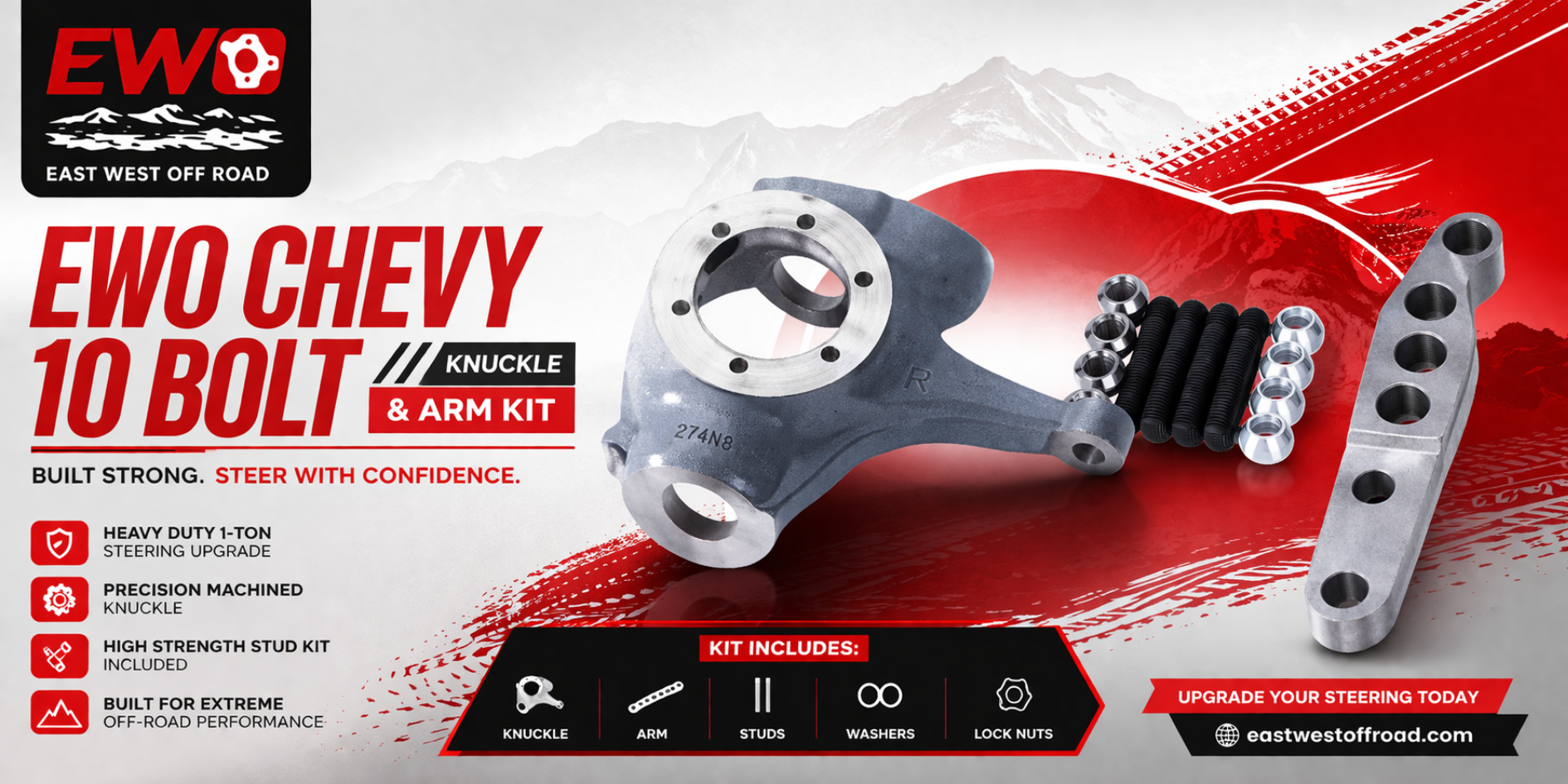

The EWO Chevy 10 Bolt Knuckle and Arm Kit includes:
- 1 Dana 44 Chevy 10 Bolt Knuckle, machined and ready to use
- Bottom-up taper configuration
- 1 Slit tapered insert
- 1 Dana 44 passenger side high steer arm, 1.25 inch thick HD
- 4 High-strength 9/16-18 studs
- 4 Conical washers
- 4 Lock nuts
This is a focused knuckle and arm kit. Builders should confirm what additional steering components may be required for their complete crossover high steer conversion.
Ideal For
This kit is ideal for:
- Dana 44 4-Stud Knuckle Upgrade projects
- Chevy 10 Bolt high steer conversions
- Chevy 10 Bolt Crossover Steering Kit builds
- Dana 44 crossover steering upgrades
- Square Body steering upgrades
- Square Body Bump Steer Fix planning
- K5 Blazer High Steer Conversion projects
- Chevy K10/K20 Steering Upgrade builds
- Jeep axle swap projects
- Rock crawling builds
- Lifted off-road trucks
- Overland vehicles
- Heavy-duty trail rigs
- Custom 4x4 steering setups
It can also support builders comparing an hd crossover steering kit, GM 1 Ton Tie Rod Conversion plan, or lifted Chevy steering geometry upgrade.
Fitment and Installation Notes
Before ordering, confirm axle fitment, steering setup, knuckle compatibility, taper configuration, steering orientation, hardware fitment, and installation requirements.
This kit is designed for Dana 44 and Chevy 10 Bolt front axle applications, but every build should still be checked carefully. Square Body trucks, K5 Blazers, Chevy K10/K20 builds, Jeep axle swaps, and custom 4x4 projects can vary based on parts, fabrication, and previous modifications.
Confirm whether your steering layout requires the bottom-up taper configuration or a bottom-down orientation using the slit tapered insert. Also verify how this kit works with your tie rod, drag link, pitman arm, steering box, suspension lift, and intended off-road use.
Because steering affects vehicle control, professional installation support is recommended when steering geometry, fabrication, or high steer setup is outside the builder’s experience.
Why Builders Choose East West Off Road
East West Off Road builds steering and suspension components for off-road enthusiasts throughout the USA. The EWO Chevy 10 Bolt Knuckle and Arm Kit gives builders a machined-ready flat top knuckle, 1.25 inch passenger side high steer arm, 9/16-18 mounting studs, conical washers, lock nuts, and a slit tapered insert in one focused package.
For builders planning a Dana 44 4-Stud Knuckle Upgrade, Chevy 10 Bolt Crossover Steering Kit, Dana 44 Flat Top Knuckle Passenger Side upgrade, Square Body Bump Steer Fix, or K5 Blazer High Steer Conversion, this kit provides the core knuckle and arm foundation for a crossover high steer build.
View the product here:
https://www.eastwestoffroad.com/product/ewo-chevy-10-bolt-knuckle-and-arm-kit
7. FAQs
1. What is a Dana 44 4-Stud Knuckle Upgrade used for?
A Dana 44 4-Stud Knuckle Upgrade is used as part of a crossover high steer conversion where the passenger side flat top knuckle and high steer arm provide the core steering foundation.
2. Is this kit compatible with Dana 44 and Chevy 10 Bolt axles?
Yes. The EWO Chevy 10 Bolt Knuckle and Arm Kit is designed for crossover high steer applications using Dana 44 and Chevy 10 Bolt front axles. Always confirm exact axle fitment before ordering.
3. What is included in the EWO Chevy 10 Bolt Knuckle and Arm Kit?
The kit includes one machined Dana 44 Chevy 10 Bolt knuckle, bottom-up taper configuration, one slit tapered insert, one 1.25 inch thick passenger side high steer arm, four 9/16-18 studs, four conical washers, and four lock nuts.
4. What does bottom-up taper mean?
Bottom-up taper refers to the steering taper orientation of the knuckle. Builders should confirm that their steering setup and related components match this configuration before installation.
5. What does the slit tapered insert do?
The slit tapered insert allows users to switch steering orientation from bottom-up to bottom-down if needed. Fitment and steering geometry should still be verified before installation.
6. Can this kit help with Square Body bump steer fix planning?
This kit can be part of a Square Body bump steer fix plan when installed with compatible components and correct steering geometry. It should not be treated as a complete solution for every steering issue.
7. Is this useful for K5 Blazer or Chevy K10/K20 steering upgrades?
Yes, it can support compatible K5 Blazer high steer conversion and Chevy K10/K20 steering upgrade projects using Dana 44 or Chevy 10 Bolt front axle setups. Fitment and installation requirements should be confirmed before ordering.
