Understanding Crossover Steering vs Push Pull is important when planning a steering upgrade for a lifted Chevy, Square Body, K5 Blazer, Chevy K10/K20, Jeep axle swap, Dana 44 swap, or Chevy 10 Bolt front axle build. Factory steering can work well for stock-style use, but once ride height, tire size, axle setup, and off-road driving demands change, steering geometry needs a closer look.
The EWO Chevy 10 Bolt Knuckle and Arm Kit from East West Off Road is designed for Dana 44 and Chevy 10 Bolt crossover high steer applications. It includes a machined-ready Dana 44 Chevy 10 Bolt knuckle, a 1.25 inch thick passenger side high steer arm, high-strength 9/16-18 mounting studs, conical washers, lock nuts, and a slit tapered insert for steering orientation changes.
This kit gives builders the knuckle and arm foundation needed for compatible Chevy 10 Bolt Crossover Steering Kit planning, Dana 44 Flat Top Knuckle Passenger Side upgrades, Square Body Bump Steer Fix projects, K5 Blazer High Steer Conversion builds, and Chevy K10/K20 Steering Upgrade setups.
Why Factory Steering Can Become a Limitation
Factory steering systems are designed around the original vehicle layout. That includes stock suspension height, factory axle position, original steering angles, and normal street driving conditions.
When a truck is lifted or modified for trail use, the drag link angle and steering path can change. That change may create steering feedback, bump steer, poor steering response, and added stress on steering parts.
This is especially important on older Chevy and GM 4x4 platforms, including Square Body trucks, K5 Blazers, and Chevy K10/K20 builds. It also matters on Jeep axle swaps, Dana 44 swaps, Chevy 10 Bolt axle upgrades, overland rigs, and custom rock crawling projects.
A crossover high steer setup can improve steering angles and can help reduce bump steer when properly installed with compatible components and correct steering geometry.
Push Pull Steering Explained
Push-pull steering generally follows the factory-style steering path found on many older Chevy and GM trucks. In a stock or mild setup, it may be acceptable for normal driving.
The challenge appears when suspension lift and off-road use change the steering geometry. As the drag link angle becomes less ideal, steering behavior can become less predictable.
For a mild street-driven truck, the factory system may still be workable. For a lifted truck, trail rig, K5 Blazer High Steer Conversion project, or Chevy K10/K20 Steering Upgrade, many builders start looking at crossover steering because the steering path can be planned differently.
Crossover Steering Explained
Crossover steering moves the steering connection toward the passenger side knuckle and high steer arm. This layout is commonly used in lifted off-road builds where the factory push-pull steering path is no longer ideal.
A crossover steering setup can help place the steering connection in a more useful position for lifted Chevy steering geometry. When paired with the right axle, knuckle, arm, taper direction, drag link, tie rod setup, and installation quality, it can support a more controlled steering layout.
However, crossover steering is not a shortcut. It must be planned as a full system. The knuckle, steering arm, taper configuration, steering orientation, mounting hardware, steering linkage, pitman arm relationship, and suspension height all need to work together.
What the EWO Knuckle and Arm Kit Does
The East West Off Road knuckle and arm kit is designed for Dana 44 and Chevy 10 Bolt crossover high steer applications. It provides the passenger side knuckle and high steer arm foundation needed for compatible steering builds.
The kit includes a machined-ready Dana 44 Chevy 10 Bolt knuckle, a 1.25 inch thick passenger side high steer arm, 9/16-18 mounting studs, conical washers, lock nuts, and a slit tapered insert.
This makes it useful for builders planning an hd crossover steering kit setup, Chevy 10 Bolt Crossover Steering Kit project, Dana 44 4-Stud Knuckle Upgrade, Square Body steering upgrade, or custom off-road steering conversion.
This is a focused knuckle and arm kit. Buyers should confirm what additional steering components may be required for their complete steering system.
Why the Dana 44 Chevy 10 Bolt Flat Top Knuckle Matters
The flat top knuckle is the base for the high steer arm. Without the right machined mounting surface, a crossover high steer setup cannot be planned correctly.
This kit includes one Dana 44 Chevy 10 Bolt knuckle, machined and ready to use. It comes with a bottom-up taper configuration.
For builders searching for a Dana 44 Flat Top Knuckle Passenger Side or Chevy 10 bolt steering knuckle machined, this kit provides the passenger side knuckle foundation for compatible Dana 44 and Chevy 10 Bolt steering projects.
Before ordering, confirm axle fitment, knuckle compatibility, taper configuration, steering setup, hardware fitment, and installation requirements.
Why the 1.25 Inch Passenger Side High Steer Arm Matters
The included passenger side high steer arm is built with a 1.25 inch thick HD design. This arm helps create the raised steering connection used in a crossover high steer layout.
For builders comparing a Dana 44 1-ton crossover high steer arm, Chevy 10 bolt passenger arm 1.25 thick, or HD passenger arm Dana 44, this is one of the key parts of the EWO kit.
The high steer arm affects drag link placement, steering angle, and final geometry. It should be reviewed with the knuckle, suspension height, tie rod setup, drag link path, pitman arm position, taper direction, and vehicle use case.
Bottom-Up Taper Configuration Explained
This kit uses a Dana 44 bottom up tapered knuckle configuration. Taper direction matters because steering components need to seat correctly in the intended orientation.
A bottom-up taper means the steering layout is planned around that direction. Builders should confirm that their steering linkage and related components match the taper before installation.
Do not assume every Dana 44, Chevy 10 Bolt, Square Body, K5 Blazer, or Chevy K10/K20 steering build uses the same taper setup. Every modified vehicle should be checked carefully.
Slit Tapered Insert and Bottom-Down Orientation Option
The kit includes a slit tapered insert. According to the product details, this insert allows users to switch steering orientation from bottom-up to bottom-down if needed.
This can help on custom steering layouts where final orientation needs to be adjusted. However, the insert should only be used after confirming fitment, steering geometry, clearance, drag link path, and installation requirements.
Before final assembly, confirm whether your build needs the standard bottom-up taper configuration or the slit tapered insert bottom down orientation.
Role of 9/16-18 Studs, Conical Washers, and Lock Nuts
The kit includes 4 high-strength 9/16-18 mounting studs, 4 conical washers, and 4 lock nuts.
These parts are used to mount the passenger side high steer arm to the machined flat top knuckle. For builders searching for 9/16-18 high strength studs Dana 44, this mounting hardware is included with the EWO Chevy 10 Bolt Knuckle and Arm Kit.
Correct installation is important. The studs, conical washers, and lock nuts should be installed properly as part of the complete steering system. Professional installation support is recommended when steering geometry, fabrication, or high steer setup is outside the builder’s experience.
Key Features and Benefits
Designed for Dana 44 and Chevy 10 Bolt Applications
This kit is designed for crossover high steer applications using Dana 44 and Chevy 10 Bolt front axles.
Supports Crossover Steering Planning
For builders comparing crossover steering vs push pull, this kit provides the knuckle and arm foundation needed for compatible crossover high steer setups.
Machined-Ready Flat Top Knuckle
The included knuckle is precision machined and ready to use with a bottom-up taper configuration.
1.25 Inch Thick Passenger Side Arm
The passenger side high steer arm uses a 1.25 inch thick HD design for demanding off-road steering applications.
Flexible Steering Orientation
The slit tapered insert allows steering orientation to be changed from bottom-up to bottom-down if the build requires it.
High-Strength Mounting Hardware
The kit includes 9/16-18 mounting studs, conical washers, and lock nuts for the knuckle and arm connection.
What’s Included

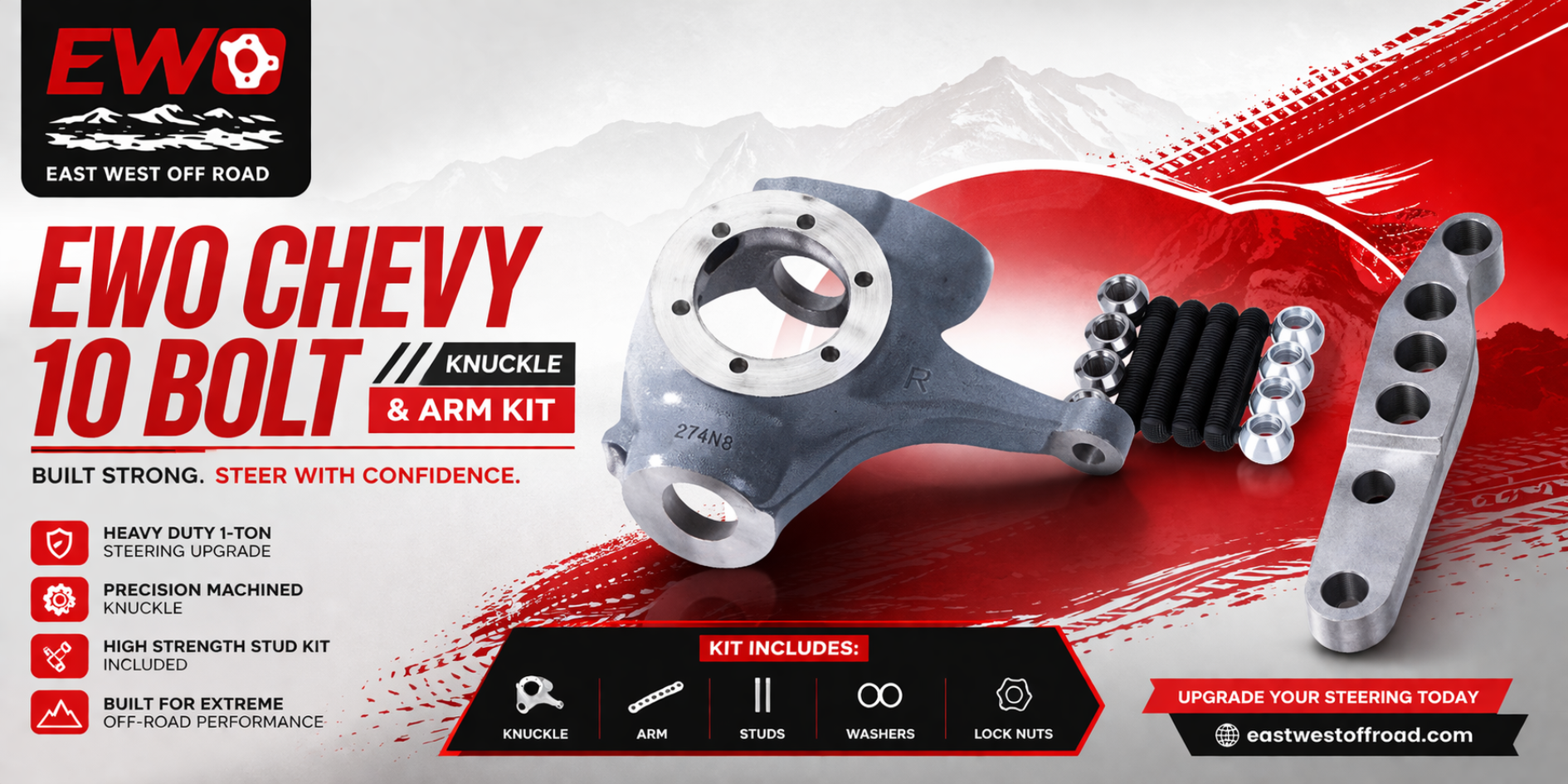

The EWO Chevy 10 Bolt Knuckle and Arm Kit includes:
- 1 Dana 44 Chevy 10 Bolt Knuckle, machined and ready to use
- Bottom-up taper configuration
- 1 Slit tapered insert
- 1 Dana 44 passenger side high steer arm, 1.25 inch thick HD
- 4 High-strength 9/16-18 studs
- 4 Conical washers
- 4 Lock nuts
This kit provides the knuckle, high steer arm, and mounting hardware. Builders should confirm what other steering components are needed for the complete build.
Ideal For
This kit is ideal for:
- Crossover Steering vs Push Pull upgrade planning
- Chevy 10 Bolt Crossover Steering Kit builds
- Dana 44 crossover steering upgrades
- Dana 44 Flat Top Knuckle Passenger Side upgrades
- Dana 44 4-Stud Knuckle Upgrade projects
- Square Body Bump Steer Fix planning
- K5 Blazer High Steer Conversion projects
- Chevy K10/K20 Steering Upgrade builds
- Lifted Chevy Steering Geometry improvements
- GM 1 Ton Tie Rod Conversion planning
- HD crossover steering kit setups
- Jeep axle swap projects
- Rock crawling builds
- Overland vehicles
- Custom 4x4 steering setups
Fitment and Installation Notes
Before ordering, confirm axle fitment, steering setup, knuckle compatibility, taper configuration, steering orientation, hardware fitment, and installation requirements.
This kit is designed for Dana 44 and Chevy 10 Bolt front axle applications, but every build can be different. Square Body trucks, K5 Blazers, Chevy K10/K20 builds, Jeep axle swaps, Dana 44 swaps, and custom 4x4 projects may vary based on lift height, steering parts, axle setup, and previous modifications.
Confirm whether your steering setup requires the bottom-up taper configuration or bottom-down orientation using the slit tapered insert. Also verify how this kit works with your tie rod, drag link, pitman arm, steering box, suspension lift, and intended off-road use.
Why Builders Choose East West Off Road
East West Off Road builds steering and suspension components for off-road enthusiasts throughout the USA. The EWO Chevy 10 Bolt Knuckle and Arm Kit gives builders a machined-ready flat top knuckle, 1.25 inch passenger side high steer arm, 9/16-18 mounting studs, conical washers, lock nuts, and a slit tapered insert in one focused package.
For builders comparing Crossover Steering vs Push Pull, Chevy 10 Bolt Crossover Steering Kit options, Dana 44 Flat Top Knuckle Passenger Side upgrades, Square Body Bump Steer Fix planning, K5 Blazer High Steer Conversion projects, or Chevy K10/K20 Steering Upgrade builds, this kit provides the core knuckle and arm foundation for compatible crossover high steer setups.
View the product here:
https://www.eastwestoffroad.com/product/ewo-chevy-10-bolt-knuckle-and-arm-kit
7. FAQs
1. What is the difference between crossover steering and push pull steering?
Push-pull steering generally follows the factory-style steering path. Crossover steering moves the steering connection toward the passenger side knuckle and high steer arm, which can help with lifted steering geometry when properly planned.
2. Is this kit compatible with Dana 44 and Chevy 10 Bolt axles?
Yes. The EWO Chevy 10 Bolt Knuckle and Arm Kit is designed for crossover high steer applications using Dana 44 and Chevy 10 Bolt front axles. Exact axle fitment should be confirmed before ordering.
3. Can this kit be used for a Chevy 10 Bolt Crossover Steering Kit setup?
Yes, it can support compatible Chevy 10 Bolt crossover steering planning by providing the passenger side machined knuckle, high steer arm, and mounting hardware.
4. What does the Dana 44 flat top knuckle passenger side do?
The passenger side flat top knuckle provides the machined mounting surface for the high steer arm in a compatible crossover high steer setup.
5. What does bottom-up taper mean?
Bottom-up taper refers to the steering taper orientation of the knuckle. Builders should confirm that their steering linkage and related parts match this taper before installation.
6. What does the slit tapered insert do?
The slit tapered insert allows users to switch steering orientation from bottom-up to bottom-down if needed. Fitment, clearance, and steering geometry should still be checked before installation.
7. Can this help with Square Body, K5 Blazer, or Chevy K10/K20 steering upgrades?
Yes, this kit can support compatible Square Body bump steer fix planning, K5 Blazer high steer conversion projects, and Chevy K10/K20 steering upgrades when used with the correct steering components and geometry.
