A Chevy Dana 44 Crossover Steering Kit is a serious upgrade to consider when building a lifted Chevy, GM, or Jeep Dana 44 front axle setup for trail use, rock crawling, overlanding, or custom 4x4 driving. Once a truck or Jeep is lifted, the original steering angles can change, and that can lead to bump steer, steering feedback, poor front-end control, and added stress on steering components.
The GM/Chevy/Jeep Dana 44 Complete 1-Ton Crossover High Steer Kit with Knuckles from East West Off Road is designed for Dana 44 crossover steering conversions. It includes USA-made EWO flat top knuckles, 1.25 inch billet high steer arms, premium 1-ton tie rod ends, drag link ends, ball joints, weld bungs, jam nuts, mounting hardware, and a fully indexable 3 inch dropped pitman arm with 32 splines.
This kit ships without DOM tubing, allowing builders to source tubing locally and help reduce oversized freight costs.
Why Factory Steering Can Struggle on Lifted Dana 44 Builds
Factory steering systems are designed around stock ride height, original axle placement, factory steering linkage, and normal driving conditions. When a Chevy, GM, or Jeep Dana 44 build is lifted, those factory angles may no longer work as intended.
The drag link can sit at a sharper angle. Steering movement may not line up well with suspension travel. On uneven terrain, this can create bump steer, steering wander, and inconsistent response through the wheel.
For lifted Chevy trucks, Jeep off-road builds, solid axle swaps, trail rigs, and rock crawlers, the steering system should be planned as a complete layout. Knuckles, steering arms, tie rod ends, drag link ends, pitman arm, steering box, tubing, taper configuration, and hardware all need to work together.
A properly installed crossover high steer setup can improve steering angles and can help reduce bump steer when used with compatible components and correct steering geometry.
Crossover Steering vs Push-Pull Steering
Many factory 4x4 steering systems use a push-pull steering layout. This type of setup may work fine for stock or mild vehicles, but it can become less ideal when a truck is lifted or used heavily off-road.
Crossover steering changes the steering path by moving the steering connection across to the opposite side of the axle. High steer raises the steering connection point using flat top knuckles and high steer arms.
Together, a 1-ton crossover high steer kit helps create a more suitable steering layout for compatible Dana 44 builds used in off-road conditions.
For builders comparing push-pull steering with a Dana 44 crossover steering kit, the goal is not just stronger parts. The goal is better steering geometry, better linkage placement, and a more reliable steering foundation for the way the vehicle is actually used.
What This Complete 1-Ton Crossover High Steer Kit Does

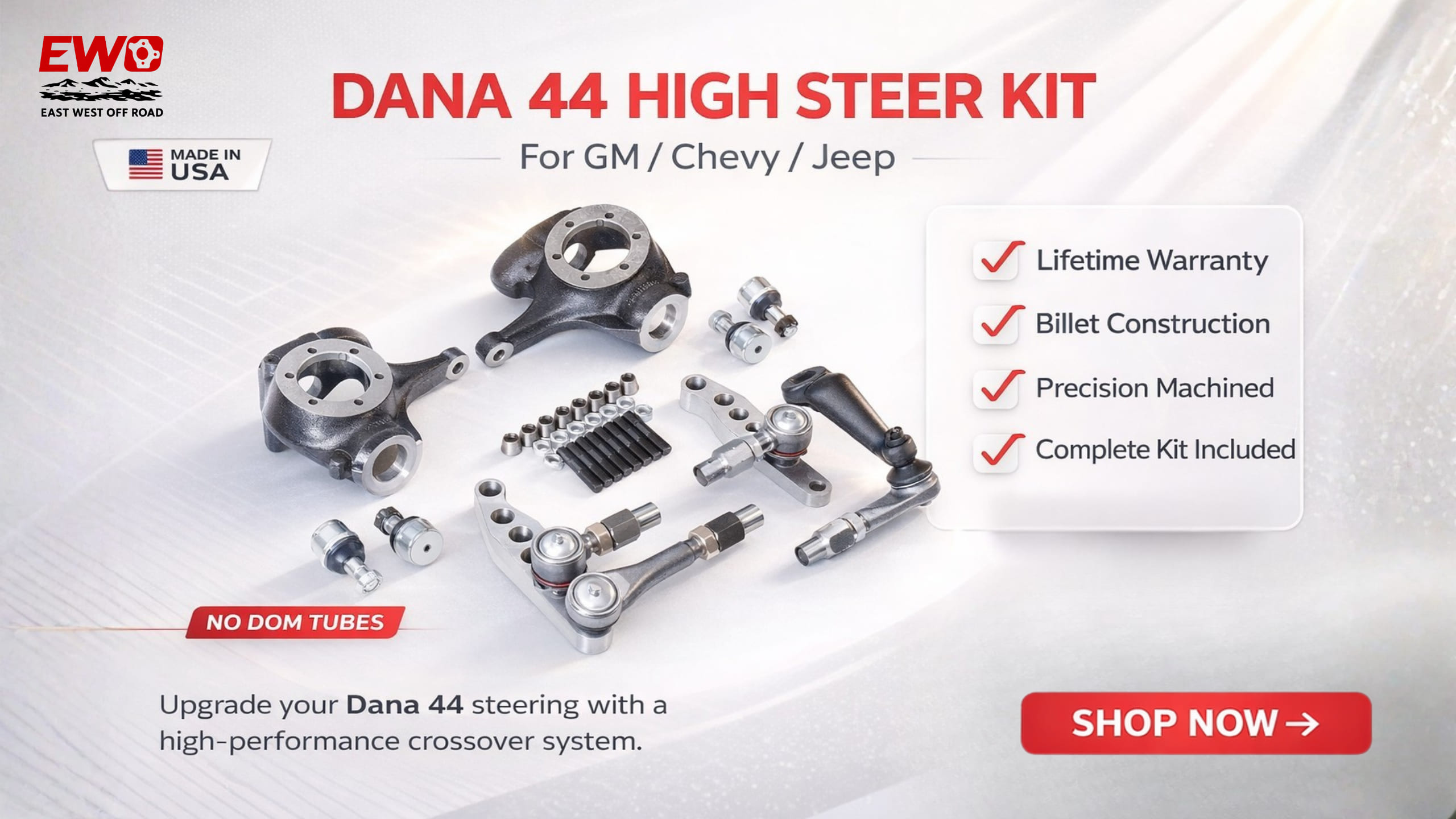

The East West Off Road Dana 44 complete high steer kit provides the major components needed for a crossover steering conversion on compatible GM, Chevy, and Jeep Dana 44 applications.
It includes both driver and passenger Dana 44 Chevy flat top knuckles with bottom-down taper, 1.25 inch driver and passenger high steer arms, ES2026R and ES2027L drag link ends, ES2234L and ES2234R tie rod ends, Dana 44 ball joints, 9/16-18 studs, conical washers, lock nuts, weld bungs, jam nuts, and a fully indexable 3 inch dropped pitman arm.
This makes the kit useful for Chevy Dana 44 crossover steering, GM Dana 44 high steer conversion projects, Jeep Dana 44 high steer conversion builds, rock crawling steering setups, overland steering upgrades, and custom 4x4 steering projects.
Why USA-Made Dana 44 Flat Top Knuckles Matter
Flat top knuckles are a major part of any Dana 44 high steer kit. They create the mounting foundation for the high steer arms.
This kit includes USA-made EWO driver and passenger flat top knuckles built for crossover steering applications. Both knuckles are supplied with a bottom-down taper configuration.
For builders planning a Dana 44 steering upgrade, the knuckles must match the axle, steering layout, taper direction, and high steer arm setup. A mismatch can create fitment problems or installation issues.
Before ordering, confirm Dana 44 axle fitment, GM/Chevy/Jeep application, knuckle compatibility, taper configuration, and installation requirements.
Why 1.25 Inch Billet High Steer Arms Matter
The included Dana 44 billet high steer arms are precision-machined from domestic billet blocks and feature a 1.25 inch thick design. The steering arms are also backed by a lifetime warranty.
High steer arms help move the steering connection point to support the crossover steering layout. On lifted trucks and trail rigs, this can be an important part of steering geometry planning.
The 1.25 inch billet high steer arms should be reviewed with the knuckles, drag link path, tie rod position, pitman arm, steering box, and suspension travel before final installation.
Bottom-Down Taper Configuration Explained
This kit uses a bottom-down taper configuration on the included Dana 44 Chevy driver and passenger flat top knuckles.
Taper direction matters because tie rod ends and drag link ends must seat correctly. If the taper orientation does not match the steering layout, the parts may not fit or function as intended.
Builders should confirm whether the bottom-down taper configuration matches their steering setup before ordering. This is especially important on modified trucks, axle swaps, custom Jeep builds, and vehicles with previous steering changes.
Why DOM Tubing Is Not Included
This is a crossover steering kit without DOM tubing. That is intentional.
DOM tubing can be expensive to ship because of its size. By shipping the kit without DOM tubes, East West Off Road allows customers to purchase DOM tubing locally and avoid oversized shipping charges.
The kit still includes the critical steering components, including knuckles, high steer arms, tie rod ends, drag link ends, weld bungs, jam nuts, ball joints, pitman arm, and mounting hardware.
Before installation, confirm tube sizing, weld bung fitment, steering link length, fabrication needs, and installation requirements.
Importance of 1-Ton Tie Rod Ends and Drag Link Ends
This kit includes premium 1-ton tie rod ends and drag link ends.
The kit includes:
- ES2026R drag link end
- ES2027L drag link end
- ES2234L tie rod end
- ES2234R tie rod end
Each listed end includes a grease fitting, castle nut, and cotter pin.
These steering components help connect the steering linkage and transfer steering input through the front axle setup. They should be planned with the pitman arm, high steer arms, knuckles, tubing, weld bungs, jam nuts, and overall steering geometry.
Role of Studs, Washers, Lock Nuts, Weld Bungs, Ball Joints, and Pitman Arm
A complete steering upgrade depends on more than just knuckles and arms. The supporting hardware matters.
This kit includes 8 high strength Dana 44 9/16-18 studs, 8 conical washers, and 8 lock nuts for mounting the high steer arms to the flat top knuckles.
It also includes left and right 7/8-18 tube adapters / weld bungs and matching jam nuts. These parts help with steering link fabrication after the correct DOM tubing is sourced locally.
The included Dana 44 upper and lower ball joints support the knuckle installation, while the fully indexable 3 inch dropped pitman arm with 32 splines supports the crossover steering layout.
A 2WD steering box is required for all crossover steering setups, so confirm this requirement before ordering or beginning the installation.
Key Features and Benefits
Complete Dana 44 Crossover Steering Setup
This kit includes knuckles, steering arms, tie rod ends, drag link ends, ball joints, pitman arm, weld bungs, jam nuts, studs, washers, and lock nuts.
Designed for GM, Chevy, and Jeep Dana 44 Applications
The kit is engineered for compatible GM, Chevy, and Jeep Dana 44 crossover steering conversions.
USA-Made Flat Top Knuckles
The EWO driver and passenger flat top knuckles are USA-made and built for crossover steering applications.
1.25 Inch Billet High Steer Arms
The included high steer arms are precision-machined from domestic billet blocks and backed by a lifetime warranty.
No DOM Tubes Included
The kit ships without DOM tubing so customers can source tubing locally and reduce oversized shipping costs.
Supports Lifted Steering Geometry
When installed with compatible components and correct steering geometry, this setup can improve steering angles and can help reduce bump steer on lifted off-road vehicles.
What’s Included
- 1 Dana 44 Chevy Driver Side Flat Top Knuckle with Bottom-Down Taper
- 1 Dana 44 Chevy Passenger Side Flat Top Knuckle with Bottom-Down Taper
- 1 Driver Side High Steer Arm, 1.25 inch thick
- 1 Passenger Side High Steer Arm, 1.25 inch thick
- 1 ES2026R Drag Link End with Grease Fitting, Castle Nut, and Cotter Pin
- 1 ES2027L Drag Link End with Grease Fitting, Castle Nut, and Cotter Pin
- 1 ES2234L Tie Rod End with Grease Fitting, Castle Nut, and Cotter Pin
- 1 ES2234R Tie Rod End with Grease Fitting, Castle Nut, and Cotter Pin
- 8 High Strength Dana 44 9/16-18 Studs
- 8 Conical Washers
- 8 Lock Nuts
- 2 Left 7/8-18 Tube Adapters / Weld Bungs
- 2 Right 7/8-18 Tube Adapters / Weld Bungs
- 2 Left 7/8-18 Jam Nuts
- 2 Right 7/8-18 Jam Nuts
- 2 Dana 44 Lower Ball Joints
- 2 Dana 44 Upper Ball Joints
- 1 Fully Indexable 3 inch Dropped Pitman Arm, 32 Splines
Important Notes Before Ordering
DOM tubing is not included.
Customers can purchase DOM tubing locally to save on shipping.
A 2WD steering box is required for all crossover steering setups.
California Proposition 65 warning applies.
Confirm Dana 44 axle fitment, GM/Chevy/Jeep application, steering box requirement, taper configuration, knuckle compatibility, pitman arm spline count, tube sizing, hardware fitment, and installation requirements before ordering.
Ideal For
This Chevy Dana 44 crossover steering kit is ideal for:
- Dana 44 crossover steering conversions
- GM Dana 44 high steer conversion projects
- Chevy Dana 44 crossover steering upgrades
- Jeep Dana 44 high steer conversion builds
- Chevy and GM lifted trucks
- Rock crawling vehicles
- Overlanding rigs
- Heavy-duty trail trucks
- Solid axle swaps
- Custom 4x4 steering upgrades
Fitment and Installation Notes
Every off-road build is different. A Chevy Dana 44 setup, GM lifted truck, Jeep axle swap, rock crawler, or custom 4x4 may have different steering box requirements, clearance concerns, pitman arm needs, tube lengths, and taper orientation.
Professional installation is recommended if you are not experienced with crossover steering, welding, fabrication, or steering geometry.
Before trail use, test fit all components, confirm steering clearance, cycle the suspension, verify hardware fitment, and make sure the steering system moves properly through its range of motion.
Why Builders Choose East West Off Road
East West Off Road builds steering and suspension parts for off-road enthusiasts across the USA. This GM/Chevy/Jeep Dana 44 Complete 1-Ton Crossover High Steer Kit gives builders a serious steering upgrade package without forcing them to pay oversized shipping costs on DOM tubing.
For anyone planning a Chevy Dana 44 Crossover Steering Kit, Dana 44 high steer kit, rock crawling steering kit, overland steering upgrade, or GM Chevy Jeep off-road steering parts upgrade, this EWO kit provides the major components needed for a complete crossover high steer foundation.
View the product here:
https://www.eastwestoffroad.com/product/gmchevyjeep-dana-44-complete-1-ton-crossover-high-steer-kit-wknuckle-without-dom-tubes
7. FAQs
1. Is this Chevy Dana 44 Crossover Steering Kit designed for GM, Chevy, and Jeep applications?
Yes. This kit is designed for compatible GM, Chevy, and Jeep Dana 44 crossover steering conversions. Confirm axle fitment and application details before ordering.
2. What does this complete 1-ton crossover high steer kit include?
It includes driver and passenger flat top knuckles, 1.25 inch high steer arms, tie rod ends, drag link ends, ball joints, 9/16-18 studs, conical washers, lock nuts, weld bungs, jam nuts, and a 3 inch dropped pitman arm.
3. Why is DOM tubing not included?
DOM tubing is not included so customers can source tubing locally and avoid oversized shipping charges.
4. Does this kit require a 2WD steering box?
Yes. A 2WD steering box is required for all crossover steering setups.
5. What does bottom-down taper mean?
Bottom-down taper refers to the taper direction on the included Dana 44 Chevy flat top knuckles. Steering components must match the taper direction for proper fitment.
6. Why are Dana 44 flat top knuckles important?
Dana 44 flat top knuckles provide the mounting foundation for high steer arms in a crossover steering setup.
7. Which tie rod ends and drag link ends are included?
The kit includes ES2026R and ES2027L drag link ends, plus ES2234L and ES2234R tie rod ends with grease fittings, castle nuts, and cotter pins.
8. Can this kit help with bump steer on a lifted Chevy?
When properly installed with compatible components and correct steering geometry, this crossover high steer setup can improve steering angles and can help reduce bump steer on lifted off-road vehicles.
