1.25 Inch Billet High Steer Arms are a major part of building a stronger Dana 44 crossover steering setup for Chevy and GM axle applications. When a truck is lifted, built for trail use, or pushed into rock crawling and technical terrain, factory steering geometry can become a weak point. Steering angles, clearance, and front-end control all become more important once the vehicle moves beyond stock use.

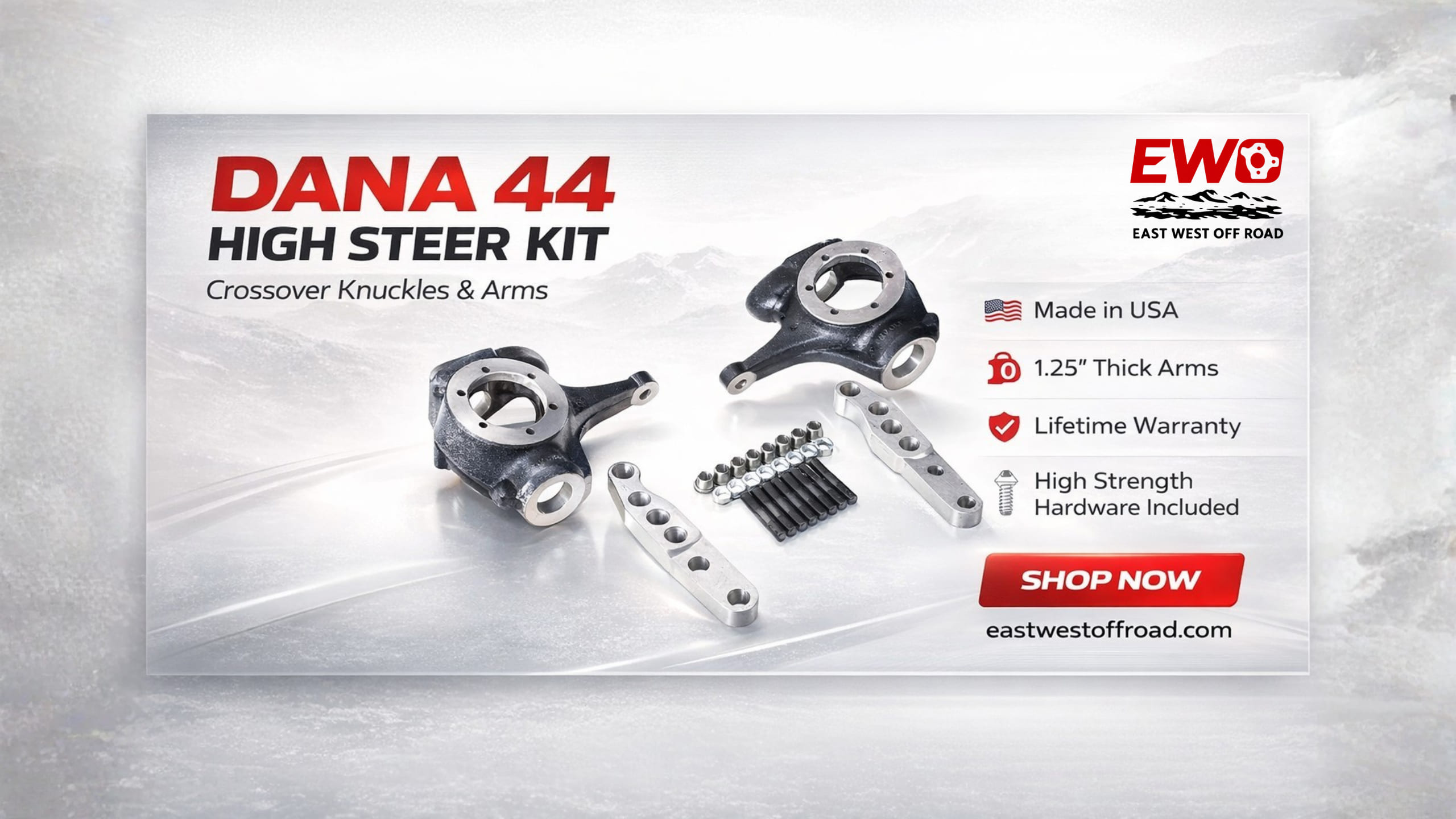

The East West Off Road Dana 44 High Steer Crossover Knuckles and Arms Kit is designed for GM/Chevy Dana 44 axle applications. It includes USA-made EWO driver and passenger flat top knuckles, massive 1.25 inch thick billet high steer arms, and high-strength mounting hardware for a focused high steer crossover setup.
For builders planning a Chevy Dana 44 Crossover Steering Kit, this package gives you the main knuckles-and-arms foundation needed for a properly planned steering upgrade.
Why High Steer Arms Matter on Dana 44 Builds
On a factory-style steering setup, the steering linkage is usually positioned for stock suspension height and normal road driving. Once a Chevy or GM truck is lifted, the steering linkage angle can change. That change can lead to unwanted steering movement, reduced clearance, and less predictable front-end control.
Common issues may include:
- Poor steering angles after suspension lift
- Bump steer during suspension travel
- Steering linkage sitting too low
- Less clearance around rocks and trail obstacles
- Reduced control on off-camber terrain
- Added stress on older steering components
This is why many builders look into a Dana 44 Crossover Steering Installation, HD crossover steering kit, or 1 Ton Steering Upgrade Dana 44 when improving their steering system.
High steer arms help move steering linkage higher and support better steering geometry when matched with the correct knuckles, tie rod ends, taper configuration, and steering layout.
What Makes These 1.25 Inch Billet High Steer Arms Important
The East West Off Road kit includes driver and passenger 1.25 Inch Billet High Steer Arms. These arms are precision machined in-house from domestic billet blocks and are backed by a lifetime warranty.
The 1.25 inch thickness gives builders a heavy-duty arm design for off-road steering use. These are also 4 hole billet high steer arms, designed to work as part of a complete Dana 44 high steer crossover setup.
For rock crawlers, trail trucks, overlanding rigs, lifted 4x4 vehicles, and custom builds, the steering arms are not just add-on parts. They are core components that help define the steering layout and support the crossover system.
Why Flat Top Knuckles Are Required
A Dana 44 Flat Top Knuckles Pair is needed because high steer arms require the correct mounting surface. Without compatible flat top knuckles, the steering arms cannot be mounted properly for a crossover high steer layout.
This kit includes:
- Dana 44 Chevy driver side flat top knuckle
- Dana 44 Chevy passenger side flat top knuckle
- Bottom-down taper configuration
The included driver and passenger side flat top knuckles are USA-made EWO components built for GM/Chevy Dana 44 axle applications.
Some builders may compare this setup while looking for a Reid Racing Knuckles Alternative. When comparing any knuckle and arm setup, confirm axle compatibility, taper direction, arm design, tie rod end requirements, and installation needs before ordering.
Bottom-Down Taper Configuration Explained
This kit uses a Dana 44 bottom down taper knuckle configuration. The bottom-down taper is optimized for crossover steering applications using 7/8 inch Chevy 3/4 ton tie rod arms.
This is an important fitment detail because steering components must match the taper and steering orientation. If the taper direction, tie rod ends, or steering arm layout do not match your build, the setup may not install correctly.
Before ordering, confirm:
- GM/Chevy Dana 44 axle compatibility
- Bottom-down taper requirement
- 7/8 inch Chevy 3/4-ton tie rod end compatibility
- Steering arm layout
- Steering box and linkage setup
- Existing steering component condition
- Installation requirements
This is especially important for older Chevy trucks, K5 Blazers, lifted rigs, solid axle swaps, and vehicles with previous steering modifications.
Key Features and Benefits
The East West Off Road Dana 44 High Steer Crossover Knuckles and Arms Kit includes several useful features for GM and Chevy Dana 44 builders:
- Complete Dana 44 high steer crossover knuckles and arms kit
- Fits all GM/Chevy Dana 44 axle applications
- USA-made EWO driver and passenger flat top knuckles
- Massive 1.25 inch thick billet high steer arms
- Precision machined in-house from domestic billet blocks
- Lifetime warranty on steering arms
- Bottom-down taper configuration
- Designed for 7/8 inch Chevy 3/4-ton tie rod ends
- Heavy-duty 4-hole steering arm design
- Includes high-strength Dana 44 mounting hardware
- Built for rock crawling, trail rigs, lifted trucks, and custom 4x4 projects
For builders trying to Eliminate Bump Steer K5 Blazer steering concerns, a properly planned high steer crossover layout can help reduce bump steer during suspension articulation when all steering parts are matched correctly.
What’s Included
This GM Chevy Dana 44 high steer set includes:
- 1 Dana 44 Chevy Driver Side Flat Top Knuckle with Bottom-Down Taper
- 1 Dana 44 Chevy Passenger Side Flat Top Knuckle with Bottom-Down Taper
- 1 Driver Side 1.25 inch Thick High Steer Arm
- 1 Passenger Side 1.25 inch Thick High Steer Arm
- 8 High Strength 9/16-18 Dana 44 Studs
- 8 Conical Washers
- 8 Lock Nuts
The included Dana 44 high strength 9/16 studs, conical washers, and lock nuts complete the mounting hardware package for the billet high steer arms.
Ideal For
This East West Off Road steering kit is ideal for:
- Dana 44 axle steering upgrades
- Chevy and GM off-road builds
- K5 Blazer steering upgrade projects
- Rock crawling rigs
- Overlanding vehicles
- Solid axle swap projects
- Heavy-duty trail trucks
- Lifted 4x4 vehicles
- Custom Jeep and truck builds
- Chevy steering knuckle upgrade projects
- Dana 44 crossover steering installation projects
It is a practical option for builders who need the main knuckles, billet arms, and mounting hardware for a compatible Dana 44 high steer crossover setup.
Fitment and Installation Notes
This kit is designed for all GM/Chevy Dana 44 axle applications, but fitment should always be verified before ordering.
Check your axle type, tie rod end compatibility, taper direction, steering arm layout, steering box setup, and installation requirements. This matters even more on older vehicles, lifted trucks, K5 Blazers, custom axle swaps, and builds with unknown steering history.
For additional product context, builders can review the helpful reference video here:
https://www.youtube.com/watch?v=QnRDI9vfi8I
Why Builders Choose East West Off Road
East West Off Road manufactures steering and suspension components for off-road builders who need parts designed for real trail use. This kit combines EWO Dana 44 crossover knuckles, 1.25 inch billet high steer arms, and high-strength mounting hardware in one focused package.
For anyone planning a USA Made Dana 44 Steering Kit, Chevy Dana 44 crossover steering setup, lifted truck steering upgrade, or custom 4x4 build, this kit provides the core components needed for a properly planned high steer foundation.
View the product here:
https://www.eastwestoffroad.com/product/dana-44-high-steer-crossover-knuckles-and-arms-kit
7. FAQs
1. What are 1.25 Inch Billet High Steer Arms used for?
They are used in compatible high steer crossover steering setups to help position steering components higher and support improved steering geometry on Dana 44 axle builds.
2. Does this kit fit GM and Chevy Dana 44 axles?
Yes. This kit is designed for all GM/Chevy Dana 44 axle applications. Buyers should still confirm exact axle fitment, taper direction, tie rod end compatibility, and installation requirements before ordering.
3. What is included in this kit?
The kit includes driver and passenger Dana 44 Chevy flat top knuckles, driver and passenger 1.25 inch billet high steer arms, 8 high-strength 9/16-18 Dana 44 studs, 8 conical washers, and 8 lock nuts.
4. What does bottom-down taper mean?
Bottom-down taper refers to the taper direction used in the knuckle configuration. This kit is optimized for crossover steering applications using 7/8 inch Chevy 3/4-ton tie rod ends.
5. Can this kit help reduce bump steer on a K5 Blazer?
A properly planned crossover high steer setup can help reduce bump steer during suspension articulation. Fitment, steering geometry, tie rod compatibility, and installation requirements should be checked first.
6. Is this kit useful for lifted trucks and solid axle swaps?
Yes. This kit can be useful for compatible GM/Chevy Dana 44 lifted trucks, K5 Blazers, solid axle swaps, custom Jeep builds, rock crawlers, and trail rigs.
7. Does this kit include tie rod ends?
No. This kit is designed for 7/8 inch Chevy 3/4-ton tie rod ends, but the listed contents include knuckles, high steer arms, studs, conical washers, and lock nuts.
