When it comes to building a reliable off-road suspension or steering system, Chromoly Heim Joints are the industry standard for strength, durability, and precision. Whether you're assembling a Rock Crawler 4 Link Kit, upgrading your Off-Road Steering Kit, or fabricating custom suspension links, high-quality chromoly heim joints are engineered to perform under the harshest conditions. Manufactured from premium 4130 chromoly steel and paired with precision bearings, these heavy-duty components provide the articulation and load capacity serious off-road enthusiasts and professional fabricators demand.
What Are Chromoly Heim Joints?
Chromoly Heim Joints, also known as Spherical Rod Ends, are high-strength mechanical joints designed to connect suspension and steering components while allowing smooth, multidirectional movement. Unlike rubber bushings, heim joints deliver precise control, increased articulation, and greater durability, making them the preferred choice for custom off-road builds.
They are commonly used in:
- Rock crawlers
- Jeep suspension upgrades
- Trophy trucks
- Ultra4 race vehicles
- Sand rails
- Tube chassis
- Custom race cars
- High-performance 4x4 builds
Why Choose Chromoly Heim Joints?
Not all heim joints are created equal. Choosing 4130 Chromoly Rod Ends provides several advantages over standard steel alternatives.
Exceptional Strength
A Heat-Treated Chromoly Joint offers outstanding tensile strength and impact resistance, making it ideal for aggressive off-road use.
Superior Fatigue Resistance
Chromoly steel withstands repeated suspension cycling without losing structural integrity, making it perfect for long-term performance.
Precision Articulation
The 52100 Steel Bearing Heim provides smooth movement while maintaining tight tolerances for improved steering accuracy and suspension control.
Corrosion Protection
A Hard Chrome Finish Rod End helps protect against corrosion, extending the lifespan of the joint in harsh environments.
Key Features of Premium Chromoly Heim Joints
Professional-grade heim joints typically include:
- 1-1/4 Heim Joint Kit
- 1.25 Rod Ends
- 1-1/4-12 Rod End Set
- Heavy Duty Rod Ends
- Spherical Rod Ends
- Teflon Lined Heim Joint
- Heat-Treated Chromoly Joint
- 52100 Steel Bearing Heim
- 1.25 Heim Jam Nuts
- 1-1/4-12 Right Hand Thread
- 1.25x1 Right Hand Heim
- Right-Hand Thread Rod End
- High-Strength Heim Joint
These premium components ensure dependable performance in demanding suspension and steering applications.
Ideal Applications
Chromoly Heim Joints are suitable for a wide range of custom fabrication projects.
Common applications include:
Custom 4 Link Suspension
A properly designed Custom 4 Link Suspension requires durable rod ends capable of handling extreme articulation and heavy loads.
Off-Road Steering Systems
Builders use Heavy Duty Steering Joints and Steering Link Joints to improve steering precision and reliability.
Race Car Suspension
Competition vehicles benefit from the lightweight strength and precision offered by chromoly heim joints.
Heavy-Duty Tie Rods
These joints are frequently used to fabricate high-strength tie rods and drag links for lifted trucks and Jeeps.

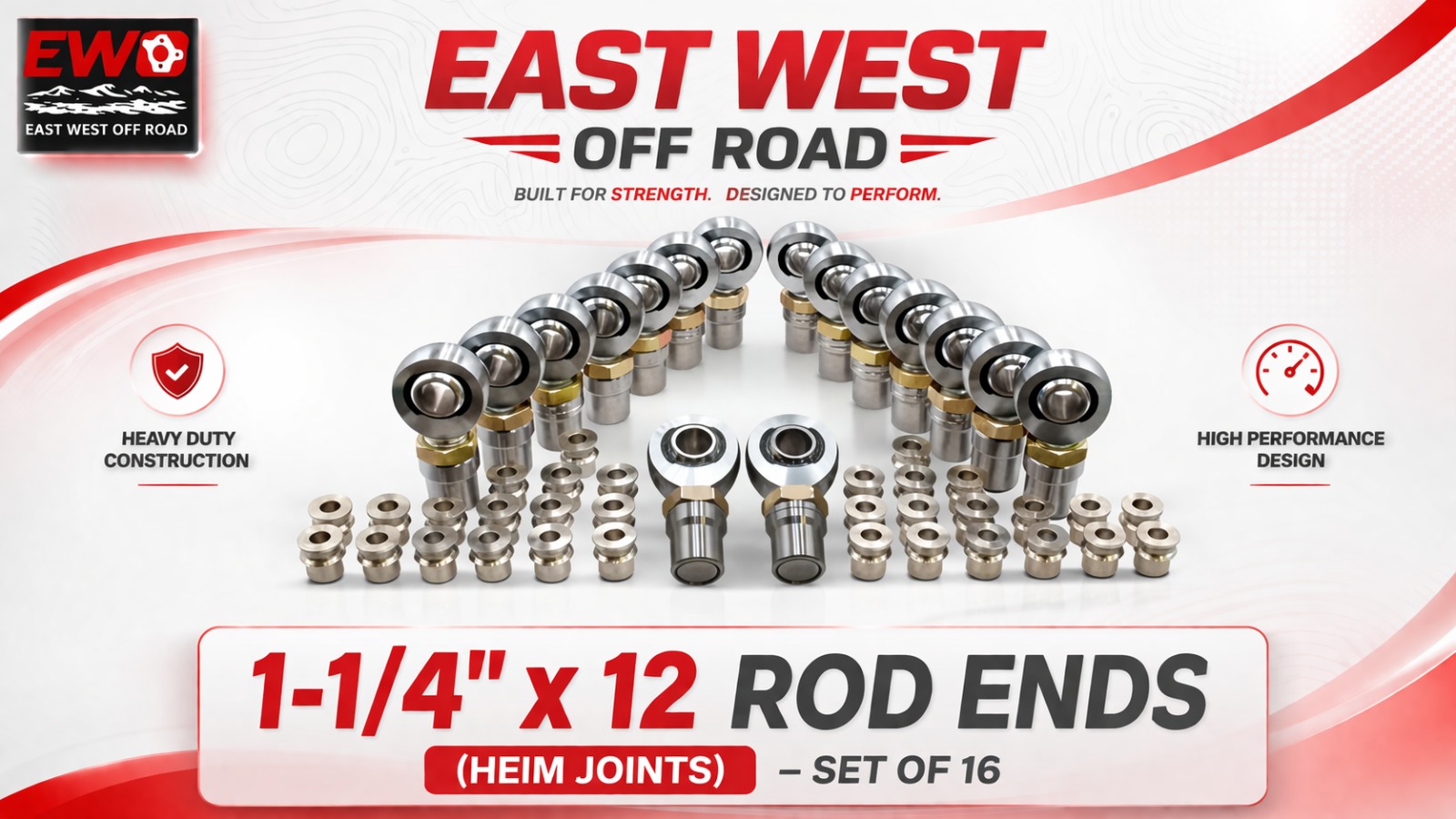

For builders requiring multiple rod ends, explore the 1-1/4 x 12 Rod Ends (Heim Joints) – Set of 16 for complete suspension and steering projects.
Teflon-Lined Heim Joints for Reduced Maintenance
One of the most important features of premium heim joints is the Teflon Kevlar Lined Heim Joint.
Unlike traditional metal-on-metal rod ends, Teflon-lined bearings provide:
- Self-lubricating performance
- Lower friction
- Reduced wear
- Longer service life
- Quieter suspension operation
These Self-Lubricating Rod Ends are ideal for vehicles frequently exposed to dirt, mud, and water.
Heavy-Duty Tube Adapters
Strong heim joints require equally durable fabrication hardware.
Common components include:
- 1020 Steel Tube Adapter
- 1045 Steel Tube Adapters
- USA Made Tube Adapter
- Hex Head Tube Adapter
- Fabrication Tube Adapters
- DOM Tubing Weld Adapter
- Weld-In Tube Adapter
- Tube Adapter for 1.5 ID Tubing
- 1.5" Inner Diameter Tube Adapter
- 1.5" Hex Tube Bung
- Weld-in Bung for 1.5 ID
- 1-1/4 Tube Adapters for 2 Inch OD DOM
- .120 Wall DOM Tube Adapter
- .250 Wall DOM Tube Adapter
These adapters create strong, reliable connections between tubing and rod ends for professional-quality fabrication.
Heim Joints with Misalignment Spacers
To maximize suspension articulation, many builders install Heim Joints with Misalignment Spacers.
Benefits include:
- Greater suspension travel
- Reduced binding
- Improved steering geometry
- Better load distribution
- Longer bearing life
Popular choices include 1.25 Heim Misalignment Spacers and 1 to 9/16 Stainless Misalignment Spacers.
Engineered for High Load Capacity
Premium Chromoly Heim Joints are designed for extreme-duty applications.
Many feature impressive load ratings such as:
- 76,200 lb Radial Load Heim
- 76,800 lbs Radial Load Rod End
This level of strength provides confidence when tackling technical rock trails, high-speed desert racing, or heavy-duty off-road adventures.
Choosing the Right Heim Joint
When selecting chromoly heim joints, consider:
- Thread size
- Bore diameter
- Ball width
- Tube diameter
- Suspension design
- Steering application
- Load requirements
Many builders prefer:
- 1 Inch Bore Heim Joint
- 1 Inch Bore 1-1/4 Thread Heim
- 1-3/8 Inch Ball Width Heim Joint
- 1-1/4-12 Right Hand Thread
Choosing compatible components ensures maximum performance and reliability.
For larger fabrication projects, the 1-1/4 x 12 Rod Ends (Heim Joints) – Set of 16 provides matching rod ends, hardware, and adapters for consistent suspension performance.
Installation Tips
To achieve the best results:
- Weld tube adapters carefully.
- Verify suspension geometry.
- Torque jam nuts correctly.
- Inspect rod ends after installation.
- Clean components after trail use.
- Replace worn bearings before failure occurs.
Routine inspections help maximize safety and extend component life.
Why Buy from East West Off Road?
East West Off Road offers premium fabrication components designed for serious off-road enthusiasts and professional builders. Their Chromoly Heim Joints are manufactured using high-strength 4130 chromoly steel, precision-machined bearings, durable tube adapters, and premium hardware to ensure outstanding reliability on the trail and the track.
Whether you're building a custom crawler, upgrading a Jeep suspension, or fabricating a race-ready steering system, East West Off Road provides the components needed to complete your project with confidence.
For complete builds, check out the 1-1/4 x 12 Rod Ends (Heim Joints) – Set of 16 for a complete set of heavy-duty chromoly components.
Frequently Asked Questions (FAQs)
What are Chromoly Heim Joints used for?
Chromoly heim joints are used in custom suspension links, steering systems, four-link suspensions, tie rods, drag links, and race car fabrication.
Why is 4130 chromoly better than standard steel?
4130 chromoly offers higher tensile strength, improved fatigue resistance, and better durability under extreme off-road conditions.
What is a Teflon-lined heim joint?
A Teflon-lined heim joint uses a self-lubricating liner to reduce friction, minimize maintenance, and increase service life.
Can chromoly heim joints be used for steering?
Yes. They are widely used in heavy-duty steering systems, drag links, tie rods, and custom off-road steering applications.
Why use misalignment spacers?
Misalignment spacers increase articulation, reduce binding, and improve suspension performance while protecting the rod end bearing.
Which tube adapters work with these heim joints?
Most premium kits are designed for 2-inch OD DOM tubing with .120-inch or .250-inch wall thickness and include compatible weld-in tube adapters.
