A 14 bolt SRW disc brake kit is a popular upgrade for classic Chevy and GMC trucks equipped with a full-float 14-bolt rear axle. Replacing the original rear drum brakes with a properly matched disc brake system can make brake inspection and maintenance easier while modernizing the rear axle for street, towing, restoration, and off-road applications. However, not every 14-bolt axle uses the same hub and brake configuration, so identifying the axle before purchasing a conversion kit is critical.
For owners of compatible 1973–1987 Chevy/GM full-float single-rear-wheel axles, the EWO 14 Bolt Disc Brake Conversion Kit provides a purpose-built solution for converting the rear axle from drums to disc brakes.
What Is a 14 Bolt SRW Disc Brake Kit?
A 14 bolt SRW disc brake kit is designed to replace the factory drum-brake assembly on a compatible single-rear-wheel 14-bolt full-float axle.
SRW stands for Single Rear Wheel, meaning the axle is configured for one wheel on each side rather than a dually setup.
The conversion typically replaces the drum and shoe assembly with:
- Disc brake rotors
- Brake calipers
- Brake pads
- Caliper mounting brackets
- Hydraulic brake hoses
- Brake-line mounting hardware
- Required installation hardware
The EWO kit is specifically listed for Chevy/GM full-float 14-bolt SRW axles from 1973–1987 and carries item number E1877. The product also offers parking-brake-caliper and steel-braided-hose options.
Why Upgrade a 14 Bolt SRW From Drum to Disc?
The GM 14-bolt full-float axle is widely used in heavy-duty trucks and off-road builds because of its robust design. For many older trucks, however, the factory drum brakes are one of the areas owners eventually want to modernize.
Easier Brake Inspection
Disc brakes expose the rotor and pad assembly, making visual inspection considerably simpler than working with an enclosed drum assembly.
You can inspect pad thickness and rotor condition without dealing with the collection of springs, adjusters, and shoes found inside a traditional drum.
Simpler Routine Maintenance
When a classic truck is being restored or modified, replacing worn drum components can require sourcing several individual parts.
A complete rear disc conversion gives the builder a more modern brake configuration and can simplify future pad and rotor service.
Reduced Drum-Related Hardware
A drum brake system contains numerous components that can wear, corrode, or require adjustment.
A disc setup uses a comparatively straightforward rotor, caliper, and pad arrangement.
Well Suited to Modified Trucks
A 14 bolt disc brake conversion can be particularly useful for:
- Classic Chevy 4x4 builds
- GMC truck restorations
- K10 and K20 projects
- K5 Blazer builds
- Off-road trucks
- Rock-crawling projects
- Custom axle swaps
- Street-and-trail vehicles
The brake system should still be matched to the vehicle's weight, tire size, front brake system, master cylinder, and intended use.
14 Bolt SRW Disc Brake Kit Fitment
Fitment is the most important consideration when selecting a conversion.
The EWO 14 bolt SRW disc brake kit is designed for 1973–1987 Chevy/GM full-float SRW 14-bolt axles.
Before ordering, verify the following:
- Full-float 14-bolt axle
- SRW configuration
- 1973–1987 application
- Correct hub configuration
- Original drum arrangement
- Wheel diameter
- Wheel backspacing
- Rotor and caliper clearance
- Brake-line compatibility
The phrase "14-bolt" by itself is not enough to establish compatibility.
There are multiple 14-bolt configurations, including full-float and semi-float axles, as well as different hub and drum arrangements.
Full-Float vs. Semi-Float 14 Bolt
This distinction is especially important when shopping for a 14 bolt SRW disc brake kit.
The EWO conversion is intended for a compatible full-float 14-bolt axle. It should not be assumed to fit a semi-float 14-bolt.
Full-float and semi-float axles differ in their hub and axle-shaft arrangements, so a bracket and rotor package designed for one configuration may not correctly locate on another.
Several current competitors make the same distinction. RuffStuff, for example, specifies its SRW conversion for 1973–1987 full-float housings and explicitly excludes semi-float applications.
If you are unsure about your axle, identify it before ordering rather than relying solely on the truck's year or model.
SRW vs. Dually 14 Bolt Brake Kits
SRW and dually applications should not be treated as interchangeable.
An SRW axle has one wheel per side, while a dually uses a dual-wheel arrangement. Hub dimensions, wheel position, and brake-component placement can differ.
The EWO kit discussed here is specifically an SRW application for 1973–1987 Chevy/GM full-float axles.
Competitor documentation also emphasizes that this style of conversion does not fit dual-wheel applications.
If your truck has a dually axle or cab-and-chassis configuration, use a conversion specifically designed for that configuration.

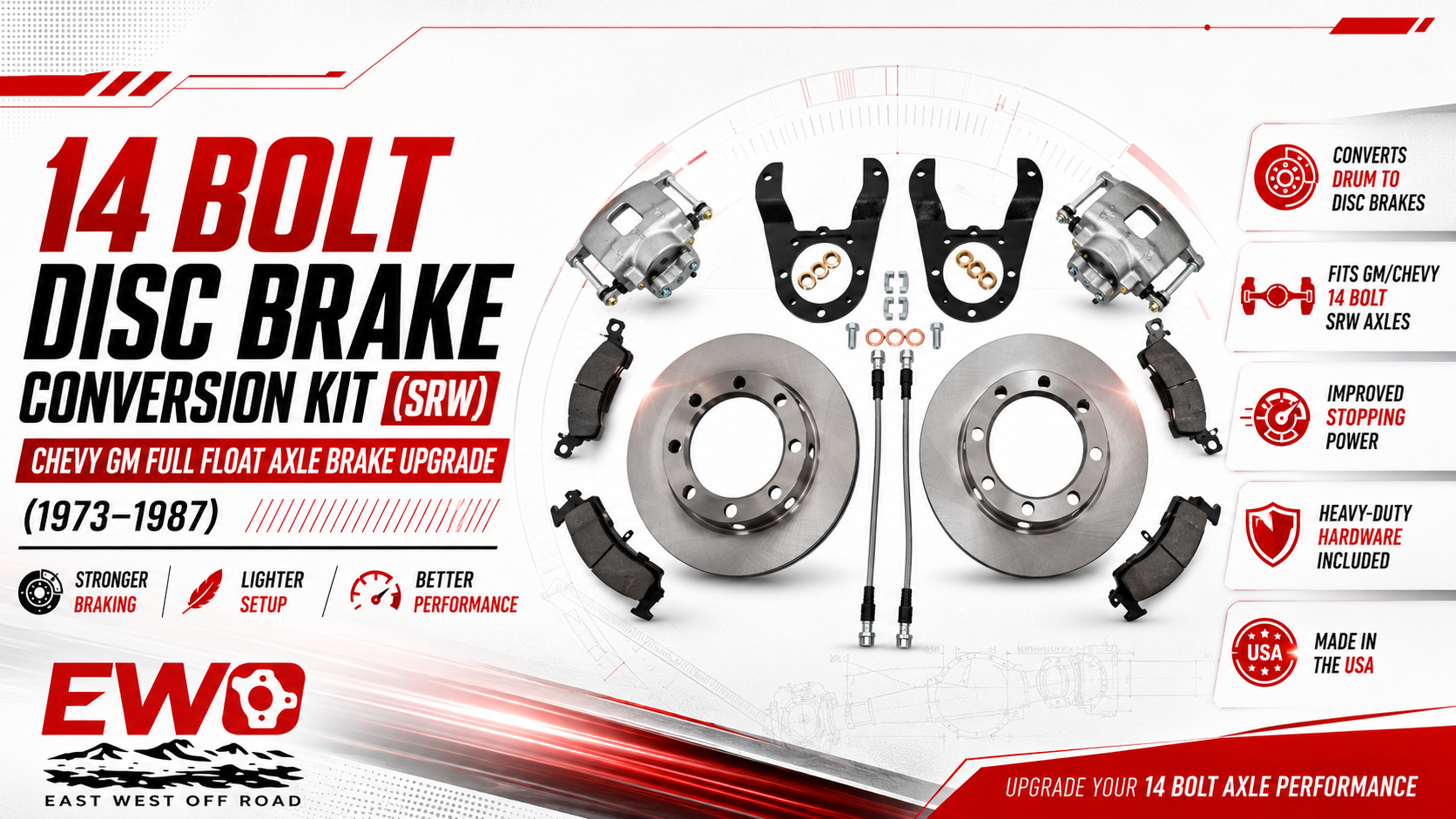

14 Bolt SRW Disc Brake Kit Components
A complete conversion kit is valuable because it reduces the need to individually source compatible brake components.
A typical kit in this category can include:
- Left and right caliper brackets
- Mounting hardware
- Brake rotors
- Left and right brake calipers
- Brake pads
- Hydraulic brake hoses
- Brake-line tabs
- Brake-line clips
For comparison, current SRW conversion kits commonly package brackets, rotors, calipers, pads, hydraulic hoses, and mounting hardware as a complete system.
The exact contents can vary depending on the manufacturer's configuration and optional upgrades, so confirm the current EWO product listing before ordering.
Rotor Location Matters
One detail that can easily be overlooked is where the rotor mounts relative to the hub.
The EWO/R1877-style conversion is designed around the specific 1973–1987 full-float SRW configuration, and comparable kits specify a rotor mounting arrangement at the backside of the hub rather than treating the rotor as a universal slip-over component.
This is one reason axle identification and measurement are so important.
A brake conversion should locate the rotor correctly in relation to the caliper. Incorrect positioning can create pad, rotor, or caliper problems.
Check the Hub Measurement Before Ordering
If you are working with an original or modified 14-bolt axle, measuring it can provide another layer of fitment confirmation.
Comparable 1973–1987 SRW conversion kits specify approximately 4-11/16 inches from the four-bolt mounting flange to the relevant hub face measurement.
Do not rely on this measurement alone. Use it together with the axle type, year range, SRW configuration, hub arrangement, and manufacturer's fitment information.
This is particularly important if the axle has previously been modified, rebuilt, or converted.
Wheel Clearance for a 14 Bolt SRW Disc Brake Kit
Wheel clearance is one of the most commonly overlooked parts of a rear disc conversion.
Your existing wheels may have cleared the original drum brakes but still interfere with the new caliper.
Current SRW conversion information commonly specifies a minimum 15-inch steel wheel with maximum 4-inch backspacing, or larger aluminum wheels, depending on the exact brake configuration.
Before installation, check:
- Wheel diameter
- Wheel backspacing
- Caliper-to-wheel clearance
- Rotor-to-wheel clearance
- Wheel-spoke profile
- Lug-stud length
- Lug-nut thread engagement
Never assume that a wheel will clear simply because its diameter matches the manufacturer's minimum recommendation.
The internal shape of the wheel can be just as important as its diameter.
Lug Stud and Rotor Considerations
The relationship between the axle's wheel studs and the conversion rotors also needs to be checked.
Some conversion designs require adequate stud length and correct stud-to-rotor clearance. Current SRW conversion instructions commonly specify that studs should pass freely through the rotor rather than being press-fit into the rotor, with sufficient lug-nut thread engagement maintained.
If your axle uses larger or non-stock studs, verify the rotor-hole diameter before installation.
Do not force an incompatible stud through a rotor.
Brake Bias After a Rear Disc Conversion
Changing the rear brake design can alter the behavior of the complete hydraulic system.
The objective is balanced braking rather than simply maximizing rear braking force.
A proportioning valve can be useful on custom builds because it allows the builder to fine-tune front-to-rear brake bias. Current conversion documentation commonly recommends evaluating proportioning when moving from drum brakes to rear discs.
If you are also changing the front brakes, master cylinder, booster, tire size, or vehicle weight, evaluate the entire brake system rather than treating the rear conversion as an isolated modification.
Parking Brake Options
A rear disc conversion also raises the question of parking-brake functionality.
Some standard disc calipers do not provide the same mechanical parking-brake function as the original drum assembly.
For builders who want to retain a mechanical parking brake, conversion kits may offer parking-brake caliper options. EWO lists a parking-brake-caliper upgrade for this product.
This can be especially important for street-driven trucks where the parking brake is expected to remain functional.
Installation Overview
Installing a 14 bolt SRW disc brake kit should be approached as a complete brake-system conversion.
1. Identify the Axle
Confirm that the axle is a compatible 1973–1987 Chevy/GM full-float SRW 14-bolt.
If the axle has been modified, take the appropriate measurements before ordering.
2. Remove the Original Drum Components
Remove the factory drum-brake components according to the axle and brake configuration.
Inspect the axle flange, hub, studs, and surrounding components while everything is accessible.
3. Install the Conversion Brackets
Install the caliper brackets using the supplied hardware and manufacturer-recommended torque specifications.
The bracket establishes the caliper's relationship to the rotor, so proper installation is critical.
4. Install the Rotors and Calipers
Install the rotors in the correct position and verify that they are properly seated.
Install the calipers and confirm that the pads sit correctly on the rotor.
5. Connect Brake Hoses
Route the hydraulic hoses so they do not contact:
- Tires
- Wheels
- Suspension components
- Sharp edges
- Exhaust components
- Moving axle or suspension parts
Allow enough movement for suspension travel without allowing the hose to become stretched or pinched.
6. Bleed the Brake System
After connecting the hydraulic components, bleed the system thoroughly.
Inspect every connection for leaks.
A firm pedal does not replace a complete visual inspection.
7. Test Brake Operation
Before normal road or trail driving, test the brakes in a controlled environment.
Confirm:
- Pedal feel
- Brake-fluid level
- Hydraulic connections
- Rotor rotation
- Caliper operation
- Wheel clearance
- Lug-nut torque
- Parking-brake operation, if equipped
- Front/rear brake behavior
Common Mistakes When Installing a 14 Bolt SRW Disc Brake Kit
Assuming Every 14 Bolt Is the Same
The biggest mistake is purchasing a kit based only on the words "14 bolt."
Always verify full-float versus semi-float and SRW versus dually.
Ignoring Wheel Clearance
A 15-inch wheel may meet a diameter requirement and still have insufficient caliper clearance.
Check the actual wheel profile.
Reusing Incompatible Hardware
Do not substitute random fasteners or brake components without confirming their specifications.
Brake mounting hardware is safety-critical.
Forgetting Brake Bias
A rear disc conversion changes the braking system and should be evaluated with the front brakes and hydraulic components.
Neglecting the Parking Brake
If the vehicle is street driven, determine how the parking brake will function before completing the conversion.
Skipping Final Inspection
Never move directly from installation to highway driving.
Perform a complete inspection and controlled brake test first.
Choosing the Right 14 Bolt SRW Disc Brake Kit
When comparing kits, focus on fitment and system completeness rather than simply choosing the lowest price.
Look for:
- Confirmed axle compatibility
- Full-float SRW fitment
- Correct year range
- Quality caliper brackets
- Compatible rotors
- Replacement pads
- Suitable hydraulic hoses
- Proper mounting hardware
- Parking-brake options when required
- Clear wheel-clearance requirements
- Manufacturer installation information
A complete kit can also simplify sourcing because the major components are selected to work together.
Why Choose the EWO 14 Bolt SRW Disc Brake Kit?
The EWO product is specifically positioned for 1973–1987 Chevy/GM full-float SRW 14-bolt axles, rather than being presented as a universal solution for every 14-bolt configuration.
The product is listed as E1877 and offers optional parking-brake calipers and steel-braided brake hoses.
Shop the EWO 14 Bolt SRW Disc Brake Kit
For a classic GM truck, 4x4 restoration, or off-road build using a compatible axle, the kit provides a straightforward path toward replacing the original rear drum-brake setup with disc brakes.
Is a 14 Bolt SRW Disc Brake Kit Worth It?
For the right axle and vehicle, converting a 14-bolt SRW full-float axle from drums to discs can be a worthwhile upgrade.
The main advantages are easier inspection, straightforward pad and rotor service, reduced drum hardware, and a modern rear brake configuration.
The key is choosing the correct kit.
If your truck uses a compatible 1973–1987 Chevy/GM full-float SRW 14-bolt axle, verify the axle configuration, hub arrangement, wheel clearance, and hydraulic requirements before purchasing.
Check 14 Bolt SRW Disc Brake Kit Fitment
Frequently Asked Questions (FAQs)
What does SRW mean on a 14 bolt disc brake kit?
SRW means Single Rear Wheel. It identifies an axle designed for one rear wheel on each side rather than a dually configuration.
Does this 14 bolt SRW disc brake kit fit all 14-bolt axles?
No. The EWO kit is designed for compatible 1973–1987 Chevy/GM full-float SRW 14-bolt axles.
Will this kit fit a semi-float 14 bolt?
No. This product is intended for the specified full-float configuration. Semi-float axles require a different conversion solution.
Does the kit fit a dually 14 bolt?
The EWO product discussed here is an SRW application. Do not use it on a dually axle unless the manufacturer specifically confirms compatibility.
What years does the EWO 14 bolt SRW kit cover?
The product is listed for 1973–1987 Chevy/GM full-float SRW 14-bolt axles.
Will my 15-inch wheels clear the disc brakes?
Wheel diameter alone does not guarantee clearance. Comparable conversion kits specify 15-inch steel wheels with maximum 4-inch backspacing or larger aluminum wheels, but the actual wheel design and caliper clearance must still be checked.
Does converting from drums to discs improve brake maintenance?
Disc brakes generally make inspection and replacement of pads and rotors more accessible than traditional enclosed drum assemblies. Actual braking performance depends on the complete brake system and vehicle setup.
Can I retain a parking brake?
A parking-brake solution depends on the caliper configuration. EWO offers a parking-brake-caliper option for this product.
Do I need a proportioning valve?
It depends on the complete hydraulic system. A proportioning valve may be useful on custom builds to adjust front-to-rear brake bias after converting the rear axle to discs.
Where does the rotor mount?
The conversion configuration matters. The 1973–1987 SRW style covered here uses a specific hub/rotor relationship, which is why axle identification and measurement are important before installation. Comparable kits specify the rotor mounting at the backside of the hub.
What should I verify before buying a 14 bolt SRW disc brake kit?
Verify the axle is a compatible full-float SRW 14-bolt, confirm the year range and hub configuration, check the hub measurement where required, verify wheel and caliper clearance, and determine your parking-brake and brake-bias requirements.
Is professional installation recommended?
Brake-system work is safety-critical. If you are not experienced with hydraulic brake systems, axle work, torque specifications, and brake testing, professional installation or inspection is strongly recommended.
